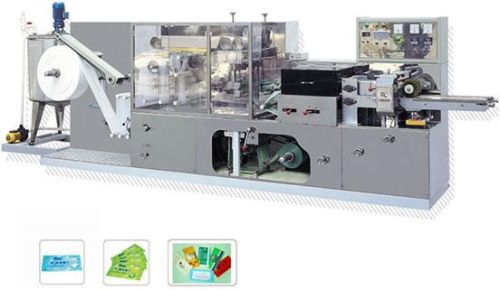

Wet Tissue Machine - (DC-wt-1-2p)

I. Introduction
model name: dc-wt-1-2p
this machine is used to produce one or two pieces independent package wet tissues, finished products as per in the picture shown above.
ii. Function and features
the flowing chart of dc-wt-1-2p full automatic 1-2 pieces per package wet tissue machine is: raw material — vertical folding — moisture — cutting — horizontal folding – counting— packing — finishing.
all the processes are finished on the machine full automatically. It is sanitary during the producing processes, it is full auto with very fast production speed, it can produce 150 pieces per minute. The machine function is very steady.
iii. Main technical parameters
power supply
380v, 50hz(for your reference, it depends on the power situation in your place)
power :
6kw
suitable material
dustless paper/air laid paper, spunlace non-woven fabric
material weight
40-80g/㎡
material specification(mm)
(150-200) * 1000 (w*diameter)
unfolded wet tissue size(mm)
(120-260)*(150-200)(l*w)
folded wet tissue size(mm)
(60-130)*(50-80)(l*w)
packing film
opp/pe, pet/pe
control system
touching screen; plc control
production speed
120-160 packages for 1 pc; 80-100 packages for 2 pcs.
weight of machine(kg)
about 1500
machine size(mm)
main machine 5400*850*1650(l*w*h)
