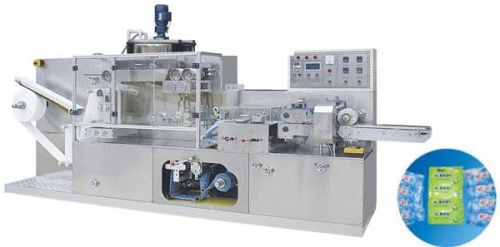

Wet Tissue Machine - (DC-wt-1p)

I. Introduction
model name: dc-wt-1p
this machine is used to produce single piece independent package wet tissue, finished products as per in the picture shown above.
ii. Function and features
the flowing chart of dc-wt-1p full automatic single piece package wet tissue machine is: raw material — vertical folding — wetting — cutting — horizontal folding — packing — finishing. All the processes are finished on the machine full automatically. It is sanitary during the producing processes, the automation degree is high, the speed is fast, can reach 150 pieces per minute and the machine function is very steady.
iii. Main technical parameters
main technical parameters:
power supply
380v, 50hz (for your reference, it depends on the power situation in your place)
power
6kw
suitable material
dustless paper, spunlace non-woven fabric
material weight
40-80g/㎡
material specification(mm)
width :150-200 diameter: 1000mm
unfolded wet tissue size(mm)
(120-260)*(150-200)(l*w)
folded wet tissue size(mm)
(60-130)*(50-80)(l*w)
packing film
opp/pe, pet/pe
control system
touching screen; plc control
production speed
100-150 pcs/min
net weight of machine(kg)
about 1500 kg
machine size(mm)
main machine 5800*850*1650(l*w*h)
