Wet Tissue Machine - (DC-wt-4-100i)

I. Introduction:
model name:dc-wt-40-100ii

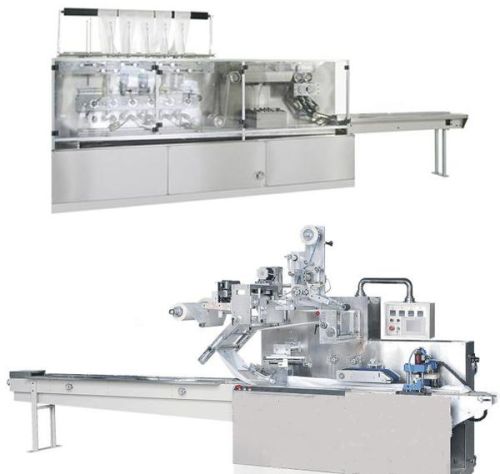

this machine is used to produce 40-100 pieces wet tissues per package, finished products as per in the picture shown above. But it is semi automatic, because it needs worker to transfer the wet tissues to the packing machine to get packed.
ii. Function and features
the flowing chart of dc-wt-40-100ii semi auto wet tissue folding machine is: raw material —splitting — folding — cutting — transporting — finishing. It is folding machine for baby wipes, can be 40-100 pieces per package. Need to match with the below full automatic wet wipes packing machine (pillow type packing). The function of the machine is steady with higher production speed.
the flowing chart of full automatic wet wipes packing machine is:
unrolling packing film—printing date—punching window hole on packing film— sticking label on window hole --- feeding wipes and forming bag — centre sealing---discharge air in the bag---end sealing and cutting—output finished products. It is pillow type packing machine, and it is suitable for 40-100 pieces per package packing.
iii. Main technical parameters
main technical parameter for folding machine
power supply
380v 50hz(for your reference, it depends on the power situation in your place)
motive factor
4kw
suitable material
spunlace non-woven fabric, non-woven fabric
material weight
40-80g/㎡
material specification (mm)
ф1000*(1000-1500)mm(d*w)
production size (unfolded) (mm)
(150-300mm)*(150-250mm)(l*w)
production size (folded) (mm)
(150-300mm)*(80-120mm)(l*w)
production speed
80-150 pile/min (6 pcs/pile)
folding way
"z" folded
net weight of machine
about 1500kg
water tank size (mm)
900*900*1900(l*w*h)
machine size (mm)
5500*3000*1800(l*w*h)
main technical parameter for packing machine
power supply
380v, 50hz(for your reference, it depends on the power situation in your place)
power
6kw
packing form
pillow type
production speed
30-50 packages/min
product size (mm)
(200-350)*(90-120)*(30-80)(l*w*h)
adjustable bag producing machine with inserting corner device
electric eye auto-follow, devices for date printing, punching, labeling
control system
color touching screen, plc control system.
3 meters raw material conveying belt
machine size
5280*1000*2100 mm (l*w*h)
weight of machine(kg)
1600kg
remark: it is semi-auto machine, for these two machines need the worker to transfer the wet tissue from the folding machine to packing machine. The operation is very easy .the machine can be also full automatic without the labor to transfer the tissue from the folding machine to packing machine, just depends on your request.
