Wet Tissue Machine (DC-wt-5-20p)

We are offering Wet Tissue Machine (dc-wt-5-20p).
i. introduction:
model name: dc-wt-5-20p

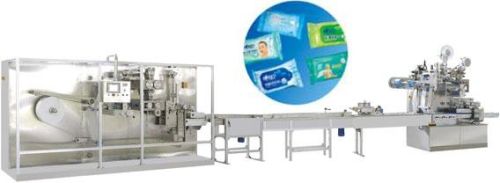

this machine is used to produce 5-20 pieces wet tissues, finished products as per in the picture shown above.
ii. function and features:
dc-wt-5-20p full auto wet tissue folding and packing machine, is suitable for producing 5-20pcs per package wet wipes. the operation of the machine is easy and the function is very steady. the part which contacts with liquid is made of stainless steel; the machine with nice outline is controlled by plc.
the flow chart of this machine is: unwinding raw material-folding-wetting-cutting-pile and counting tissue-transport tissue to packing-output finished products.
all the processes are finished on the machine. the whole machine is full automatic, fast, durable, stable，and the production process is sanitary.
iii. main technical parameter of folding part
power supply:
380 v,50hz (for your reference, it depends on the power situation in your place)
power :
8kw
suitable material
spun-lace non-woven fabric, hot-rolling non-woven fabric
material weight
40-80g/㎡
production size (unfold):
(160-220)*(180-220)mm ( l*w)
production size ( fold)
(80-110)*(70-80)mm (l*w)
production speed
200-300 pcs/ min
folding way
“z” fold and double “ z” fold, and then "v" fold
counting way
auto counting system, the number of pcs per pile can be changed.
controlling system
all machine adopt plc control system。
machine size
3600*1100*1800mm ( l*w*h)
water tank size
2000*1100*1900mm ( l*w*h)
iv.main technical parameter of packing part
power supply:
380 v,50hz (for your reference, it depends on the power situation in your place)
power:
6kw
production size
(150-280)*(60-120)*(10-30) mm (l*w)
production speed:
30-50 package per min
controlling system
plc control, color touch screen
main function of machine
placket unit, labeling unit, date printing unit, double labeling unit. ( can add small label unit for preventing tear, optional)
machine size
5700*1100*2200 mm (l*w*h)
machine weight
1500 kg.
