Wet Tissue Machine - (DC-wt-5-30p)

I. Introduction:
model name: dc-wt-5-30p

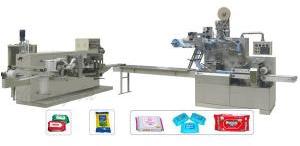

this machine is used to produce 5-30 pieces wet tissues per package, finished products as per in the picture shown above.
ii. Function and features:
a. For wet tissue folding part
the cover of machine and the parts which contact with liquid is made of stainless steel, the machine is beautiful and the product is sanitary. Moisture on the process, it leads the product uniformity, auto-counting, easy packing. There is paper stands, which is easy to change the material, auto-stop when the material is used up.
main technical parameter of folding machine
power supply
380v, 50hz (for your reference, it depends on the power situation in your place)
power
3.5kw
suitable material
dustless paper, spun-lace non-woven fabric
material weight
40g/㎡-80g/㎡
material specification
200*ф200mm (l*d)
unfolded size of wet tissue
200*200mm (l*w)
folded size of wet tissue
100*70mm (l*w, the width is changeable)
production speed
300-500 pcs/min
auto-counting function
auto-wetting system(with auto-mixing round function)
net weight of machine(kg)
about 1800 kg
b. For wet tissue packing part
the packing machine is suitable for 5-30pieces per package. The number per package can be adjusted according to your requirement. The outline of machine is made of stainless steel. The plc control system and the color touching screen use japanese or taiwanese brand name. It is easy to operate and the production speed is fast. The function is steady.
main technical parameter of packing machine
power supply
380v, 50hz (for your reference, it depends on the power situation in your place)
power
5 kw
product size (l*w*h)
(150-280)*(60-120)*(10-30) (mm)
product speed
30-50packages/min
control system
plc control system, color touching screen
size of conveying belt(mm)
3250*430*870 (l*w*h)
weight of machine
approx. 1000kg
machine size (mm)
5150*1120*2100 (l*w*h)
main function
punching, labeling, date printing
special configuration
stainless steel machine crust, 3 meters material conveying belt
remark: it is semi-auto machine, for these two machines need the worker to transfer the wet tissue from the folding machine to packing machine. The operation is very easy. The machine can be also full automatic, no need to transfer the tissue from the folding machine to packing machine, just depends on your request.
