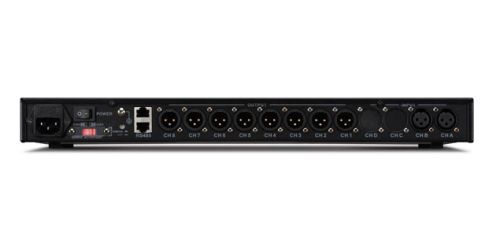

WHARFEDALE PRO VERSADRIVE Speaker Management System

All-new Speaker Management System
The new Versadrive SC-26 speaker management system offers all the digital signal processing a live sound engineer needs. Packaged into a neat 1U rack design, an intuitive and concise front panel with LCD screen enables engineers to make essential adjustments to the speaker configuration with accuracy. Versadrive takes control of all audio dynamics such as crossover, EQ and limiter. With USB and RS485 connectivity Versadrive can be networked and controlled using the supplied software directly from your PC. With a 32-bit DSP processor and 24-bit AD and DA converter, rest assured your sound will be heard clearly across every speaker in your rig.
Key Features
•2 x inputs
•6 x outputs
•Complete digital sound processing solution
•6-band parametric EQ with lowhigh shelf
•Limiter
•Crossover Filter
•Independent processing for each output channel
•Intuitive rotary control with LCD front panel
•30 Save slots
•WLA, Delta and EVP-X MKII factory presets
•USB connection for editing settings
•RS485 connection for remote control up to 1500m
•Password protection for venue install
Ready For Any Rig
As the name suggests, versatility has been executed into all aspects of design with 6 balanced outputs working independently for use with any combination of loudspeakers. The crossover features linkwitz-riley, bessel and butterworth modes all of which can be used in typical stereo crossover formations, or as individual high-pass and low-pass filters on each channel. The output EQ offers a variety of modes including low-shelf, high-shelf and parametric with the central control making an ease of pinpointing exact frequency adjustments.
