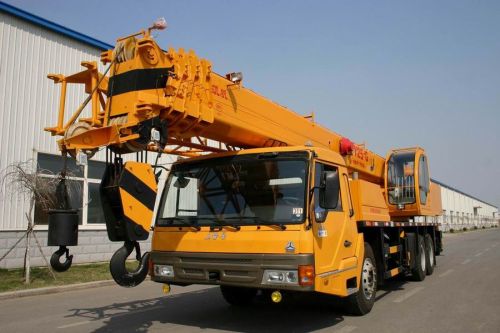

Wheel Crane, Brand Name : RP

We are offering wheel crane.
M5286jqz25g(qy25g)crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 25t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.working condition
altitude: 0-4500m
temperature: -25℃--+45℃
allowed working condition: solid, stable land, the vehicle should be horizontal
wind force: ≤6 degree
working range
m5286jqz25g（qy25g）crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 25t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
main parameters
items
unit
value
working performance parameters
max. Rated lifting weight
kg
25000
max. Lifting force of the basic boom
kn.m
875
max. Lifting force of the longest main boom
kn.m
475
max. Height of the main boom
m
32.5
max. Height of the vice boom
m
40.2
max. Speed of the single rope
m/min
115
working speed
extension time of the lift boom
s
115
lifting time of the lift boom
s
79
turning speed
r/min
0～2.4
traveling parameters
max. Traveling speed
km/h
70
max. Grade ability
%
26
min. Turning radius
m
11
min. Ground clearance
m
0.27
approaching angle
°
16
departure angle
°
12
weight parameters
the whole weight of full load
kg
28320
load of the front axle
kg
6950
load of the middle-rear axle
kg
21500
the whole weight
kg
28450
dimension parameters
external dimension（length×width×height）
mm
12613×2600×3285
vertical span of outrigger
m
5.165
horizontal span of outrigger
m
5.9
length of main boom
m
10.2~32.1
length of vice boom
m
8.1
elevation of boom
°
-1~80
chassis
model
—
taz5283j
engine model
—
wp10-270
rated power/speed
kw/（r/min）
199/2200
max. Torque/rotate speed
n.m/（r/min）
1100/1200-1600.
