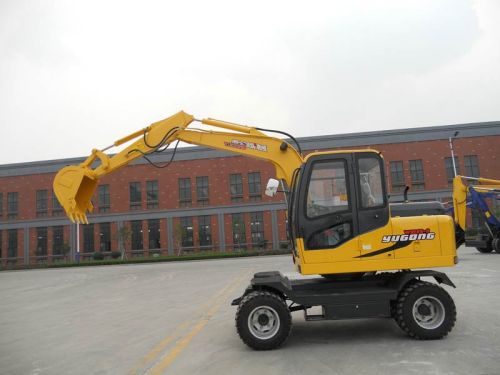

Wheel Excavator, Brand Name : Yugong, Certification : CE, ISO9001

₹ 36.40 Lakh / 45000 45000 Set

MOQ1 Set(s)
CertificationCE,ISO9001
Brand NameYugong
Maximum Digging Depth4065mm
hydraulic system pressure(mpa)28
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

CertificationCE,ISO9001
Brand NameYugong
Maximum Digging Height7235mm
wheel tread(mm)1860
rotation speed(r/min)11
Operating Weight9880kg
engine powerYC4D80 56
speed rpm22 00
Bucket capacity0.3
Max Digging Radius7230mm
Maximum Digging Depth4065mm
max.unloading height(mm)5115
tire model205/70R-16
transport dimension6400*2205*3025mm
Rated Speed27km/h
wheel base(mm)2200
hydraulic system pressure(mpa)28

We are offering wheel excavator.
1.as domestic first company, we design the machine by car design philosopy, create transformers type excavator, and acquire the national patent.
2.the hydraulic system and multi-valve of korea and japan adopt loop pressure compensation, load sensitive type valve,and non-pressure interference, so make the operation coordination.
3.the engine is the newest type yuchai engine, gets the national standard ii.
4.structure parts are made by full automatic nc boring processing.precise gap,uniform lubrication.blasting cleaning. Strong paint adhesion. Cab and covering parts are made by electrophoresis processing and increase corrosion resistance.
5.full-automatic welding, weld joint adopts ultrasonic flaw detection,get weld zero defect.
6.the cab shows the harmony of mahcine and human. Comfortable aero seat, wide vision. Equipped with the air-condition, and sound.the inside design adopts the enviromental material, and make the inside cab elegant and fresh.
7.pass the agricultural machinery appraisal of shandong province,enjoy nation subsidies.
8.cummins engine for your choice.
