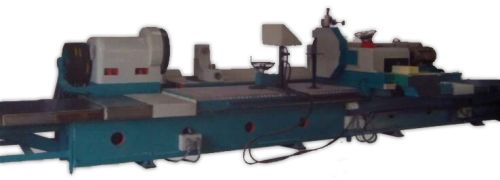

WHEEL HEAD TRAVELS AUTO CAMBER ROLL GRINDING MACHINE

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Prime Machine tools is Manufacture of Roll Grinding Machine with prime's spirit of precision, perfecttion and supeiority, Prime Roll grinding Machine generally meant for Metallic & non-metallic Rolls of steel Rolling mills, Coil Mills, Foils mills, Rubber roll Industries work-shop industries for microns accuracy.

View More Details

Send Enquiry

Company Information

PRIME MACHINE TOOLS

Kathwada, Ahmedabad, Gujarat

View Number

Member Since 22 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

	MODEL P.M.T	RG- 3000	RG-4000	RG-5000
	GRINDING LENGTH	3000MM	4000MM	5000MM
WorkingCapacity	Maxi Grinding Dia	Ø900mm	Ø1000mm	Ø1000mm
	Mini Grinding Dia	Ø200mm	Ø250mm	Ø250mm
	Maxi Job Weight	8000kgs.	10OOOkgs.	12000kgs.
	Grinding Wheel Size	750x304.8x50.8	750x304.8x76.2	750x304.8x76.2
Wheel head	R.P.M of Wheel	Variable A.C. Drive	Variable A.C. Drive	Variable A.C. Drive
Wheel head	Wheel Head Travels	Mechanical	Mechanical	Mechanical
Work head	R.P.M	2 Speed Gear Box	2 Speed Gear Box	2 Speed Gear Box
EletricalMotor	Work- Head	20 H.P.	20 HP.	20 H.P.
	Wheel- Head	20 HP.	20 HP.	20 H.P.
	Mechanical	03 H.P.	03 H.P.	03 H.P.
	Colant Motor	0.10 H.P.	0.10 HP.	0.10 HP.
	MaganeticSepartor	0.25 HP.	0.25 H.P.	0.25 H.P.
Accuracy ofwork piece	Roundness of Work Piece	With in 0.01mm	With in 0.01mm	With in 0.01mm
	Cylindricity of Work	Piece0.01mm/mtr.	0.01mm/mtr.	0.01mm/mtr.
	Surface finish of Roll	N4 to N6 Ra	N4 to N6 Ra	N4 to N6 Ra
	Camber on Work Piece	± 0.30mm±	0.30mm±	0.30mm
