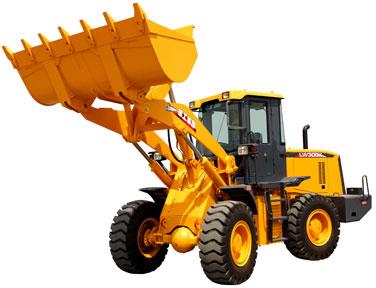

Wheel Loader Lw300k

Excellent Performance
large Strength: Strong Bucket Breakout Force of 12 Ton Ensures the Adaption to Various Tough Conditions. the Strong Boom Lifting Force of 7-ton Ensures that the Machine Could Meet Various Operation Methods of Heavy Load.
reliable Operation: with the Long Wheelbase of 2900mm and Long Machine Body of 7250mm, the Machine is Ahead in the Industry in Terms of the Operation Reliability.
smooth Driving: Centered Design of Wheelbase, No Speed Difference Between Front and Rear Wheel, Smooth Turning and No Abrasion of the Tyre.
high Efficiency
quick Action: the Total Time of Three Devices is Only 10.3s, Leading in the Industry.
fast Speed: Reasonable Gear Arrangement, I Gear of 7 Km/hour, Ii Gear of 14 Km/hour, Leading Top in Industry in Terms of the Operation Efficiency.
flexible Steering: Small Turning Radius; Load Sensing Steering, Flexible and Efficient.
sufficient Power: Famous Engine, Using the Power Efficiently and Saving the Energy Effectively.
high Strength
heavy Load Design, the Front and Rear Frame Adopt Box Type Structure, Thick Board and High Strength.
the Key Structural Parts Adopt the Finite-element Analysis to Ensure that the Machine Could Adapt to Various Kinds of Dangerous Working Condition.
large Distance Between Up and Down Articulated Plate, Large Wheelbase. the Machine Features Higher Strength and More Reliable Operation.
the Machine Weight Reaches 10.6 Ton, the Length of 7.25m. the Structural Strength Leads Top in the Industry.
long Service Life
key Articulated Positions are of Two-stage Dustproof, Featuring Small Abrasion and Long Service Life.
durable Blade and Bucket Teeth Feature Longer Service Life.
the Hydraulic Pipeline Adopts Two-level Sealing of 24° Cone and O Ring, Settling the Common Issue of Leakage.
the Easily Worn Pipeline is Equipped with the Protection Bush, Prolonging the Service Life.
convenient Maintenance
the Engine Hood Adopts Large Side Door of Upturning Design, Featuring Large Opening Angle and Easy Access.
it is Convenient and Easy to Fill the Oil to the Brake System.
the Hydraulic Valve is Easy to Access, Convenient for Repair and Inspection.
the Grease Fillers of Integrated Position Provide More Convenience for the Maintenance of the Shaft.
comfortable Driving
the Luxurious Cab Features Large Space and Wide Visibility.
elegant Adjustable Instrument Panel and Comfortable Operation.
dual-lever Gear Shift Control, No Parking During the Speed Change, Flexible and Convenient.
optional Electric Cabinet and Air Conditioner; More Convenient Operation, and More Comfortable Driving.
key Breakthrough of Leading Level in Industry
start the Vehicle Manufacturing Technology First in China, and Adopt the All-metal Mould Pressing Covering Part, Keep the Color of the New Vehicle Through the Electrophoretic Coating.
item Parameter Unit
rated Load 3.0 T
bucket Capacity 1.8 M3
dumping Height 2930 Mm
dumping Distance 1000 Mm
max.drawing Force ≥120 Kn
max. Traction ≥90 Kn
dimension (l×w×h) 7250×2580×3290 Mm
operating Weight 10.6 T
boom Lifting Time 5.68 S
total Time of Three Devices 10.3 S
wheelbase 2900 Mm
min. Turning Radius (bucket Outer) 6067 Mm
rated Power 92 Kw
long Boom Parameter
bucket Capacity 1.5/1.8 M3
rated Load 2.7/2.7 T
dimension (length × Width × Height ) 7540×2580×3290
7640×2580×3290 Mm
dumping Height 3290/3225 Mm
dumping Distance 1092/1172 Mm
operating Weight 10.6/10.8 T
attachment Parameter－grasping Grass
dumping Height 3043 Mm
dumping Distance 2036 Mm
clamp Body Width 2200 Mm
max. Opening 2800 Mm
attachment Parameter－clamp（iii）
dumping Height 2784 Mm
dumping Distance 1134 Mm
min. Circle Diameter 590 Mm
max. Opening 1700 Mm
attachment Parameter－side Dumping
bucket Width 2650 Mm
dimension 7414×2650×3290 Mm
dumping Height (straight/side) Dumping 2813/3623 Mm
dumping Distance (straight/side) Dumping 1104/183 Mm
lifting Height (straight/side) Dumping 5120/6052 Mm
attachment Parameter－sliding Fork
fork Folding Angle 20 °
attachment Length 1575 Mm
attachment Width 1980 Mm
attachment Height 1200 Mm
fork Teeth Length 1050 Mm
