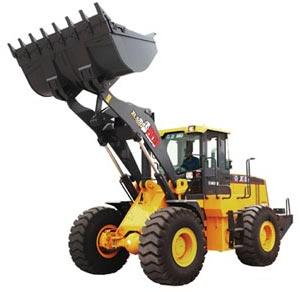

We are instrumental in offering a highly efficient range of Wheel Loader : LW500KL. Our range of Wheel Loader: LW500KL is known for its robust construction and abrasion resistant & shock resistant properties. Moreover, this range of Wheel Loader: LW500KL has a wide application in various technologies.
Features :Technical Specifications
| Item | Parameter ( Unit ) | |
| Rated load | 5000 kg | |
| Tipping load | 110 kN | |
| Bucket capacity | 3 m | |
| Dumping height | 3090 mm | |
| Dumping distance | 1130 mm | |
| Lifting height | 5262 mm | |
| Bucket width | 3000 mm | |
| Max.drawing force | 170 kN | |
| Max. traction | 175 kN | |
| Articulation angle | ±38o | |
| Dimension (Length × Width × Height ) | 8185×3000×3465 mm | |
| Operating weight | 17.4 t | |
| Boom lifting time | â‰Â¤6 s | |
| Total time of three devices | â‰Â¤11 s | |
| Wheelbase | 3300 mm | |
| Tread | 2250 mm | |
| Min. turning radius(tyre center) | 5925 mm | |
| Min. turning radius (bucket outside) | 6910 mm | |
| Rated power/rotary speed | 162/2200 kW/r/min | |
| Engine model | WD10G220E23 | |
| Gradeability | 30 o | |
| Speed | 1 Gear (Forward/Backward) | 11/13 km/h |
| II Gear (Forward) | 36 km/h | |
| Tyre specification | 23.5-25-16PR | |
