Wheel Online X Ray Inspection Machine

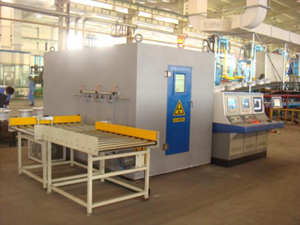

Wheel Online X Ray Inspection Machine this kind of Online Wheel Inspection System By applying advanced control technology, can Online Inspect Hub easy and clear.Testing target---Material: Mg alloy, Al alloy, Ti alloy; Diameter: 12-26inch; Rim Height: 4inch-15inch; Casting method: Low-pressure casting/gravity casting System consist: ■ X-ray Unit system                                ■ Mechanical movement system ■ Image capture system                            ■ Electric control system ■ Image processing system                         ■ Radial protection system ■ Automatic identification tyre and measuring system  Technical parameter Max penetration: 110mm(AL) Spatial resolution: 2.4-2.8LP/mm Static system sensitivity: 2.5-3.5% IIF/2.0-2.5% FPD Sensitivity after processing: 2.0-2.5% IIF/1.0-1.5% FPD Inspection Speed (18 inches):45s /set   Standard P. R. China JB4730-2005AB USA ASTM E155-2005 Pic of unit
