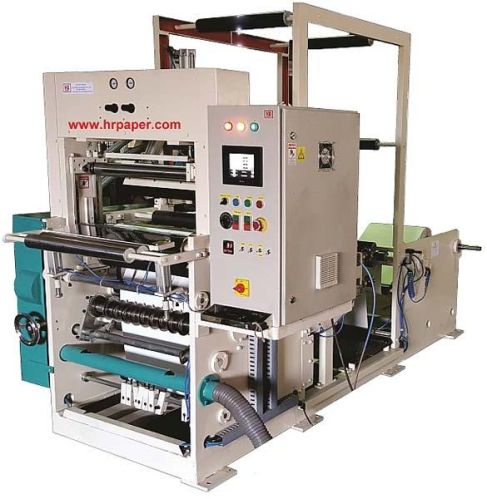

Contact SupplierOur domain expertise lies in manufacturing & supplying of ATM Roll Making Machine (HR SR 120 FP) in India. Our HR SR 120 FP Slitting & Rewinding Machines are used for making Tape Less Adding Rolls, ATM Rolls etc. Further, they are available with one Color Flexographic Printing Unit and acknowledged for their brilliant functioning. One can even achieve them in custom-built specifications.
More about ATM Roll Making Machine (HR SR 120 FP)
Hi-Speed surface winder for making tape less Adding machine rolls, ATM Rolls, etc. Machine has fully integrated user Friendly Touch Screen, PLC base Controls. The paper is auto folded, Pinched and Rider roll is auto lowered. It also has one color Flexo Printing attachment to print Mark Sensor. The machine will slow down and stop before it reached the set desired length. Auto Marker gets ON before it reaches the set length. The Rider roll is auto lifted on completion of the Rewound Roll.
Working Width | 18" (457 mm) / 28" (711 mm) |
---|---|
Floor Space 18" (457 mm) | 8.5 ft L x 5 ft B x 7 ft H |
Designed Speed | Variable upto 125 mtrs / min |
Max. Unwind dia | 40” |
Max. Wind dia | 9" (230 mm) |
Core ID at Unwinding | 3” (76 mm) Paper core |
Core ID at winding | 13 mm, 18 mm, 1” |
Minimum Slit | 35 mm |
Power Required | 3 HP 3 Phase (440V 50Hz) |
Type of material | Paper & Thermal Paper |
Optional | Pneumatic Reel loading & Air Shaft at Unwind |
