Automatic EXTRUDER HOPPER LOADER, Color : White

₹ 1 Lakh - ₹ 2 Lakh / Unit

ConditionNew
Automation GradeAutomatic
Number Of FlowerHopper Loaders
Total Carbohydrate1Year
Country of OriginIndia
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 16 Years
Nature of Business Manufacturer
Year of Establishment 1986

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerHopper Loaders
ConditionNew
Total Carbohydrate1Year
Automation GradeAutomatic
Country of OriginIndia

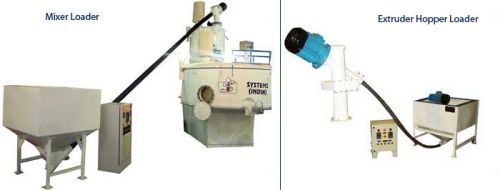

Systems (India) Screw Conveyor / Extruder Hopper Loader is a motor driven spring type metal screw conveyor for conveying PVC resin / PVC compound from ground level to hopper of the machine. The lower end of the conveyor is fitted with compound receiver 200 Kg. capacity with Vibrator. Level of the hopper is controlled by level controller.

MODEL NO:	SI/SSC/1T	SI/SSC/2T	SI/SSC/10T
Motor Drive (1440 rpm)	2 HP	3 HP	7.5 HP
AC Variable Drive	AC Variable Drive for 2 HP	AC Variable Drive for 3 HP	AC Variable Drive for 7.5 HP
Conveying Time	8- 10 Kg/ Minute	12- 14 Kg/ Minute	80- 160 Kg/ Minute
Conveying Distance	7 - 10 mtrs.	7 - 10 mtrs.	6 mtrs.
Vibrator Tank Capacity	200 KG.	200 KG.	50KG - 500 KG.
Motor	0.5 HP	0.5 HP	NA
Level Controller	Fork Type/Micro Switch	Fork Type/Micro Switch	NA
