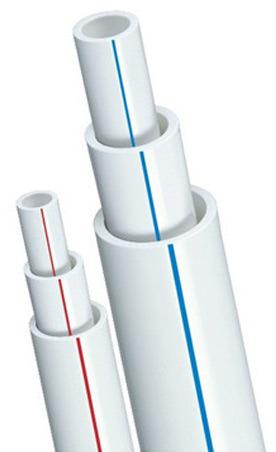

UPVC Plumbing Pipes, Feature : Crack Proof, High Strength

Listing ID #1385054

Get Latest Price

ColorWhite
FeatureCrack Proof, High Strength
Length3-6 Mtr.
MaterialUPVC
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Color White
Feature Crack Proof, High Strength
Length 3-6 Mtr.
Material UPVC
Thickness 0-10mm
Diameter 1 inch, 1/2 inch, 2 inch

We are instrumental in offering UPVC Plumbing Pipes that are made as per world wide acceptable American Standard, ASTM-D 1785/89 with its latest amendments under strict quality control system. These Pipes are threaded to match with GI Pipes & Fittings conforming to IS : 1239 (Part-i). Further, these pipes can be availed in different specifications as per the clients requirement.
Suitable For

Hot water lines
Corrosive fluid lines
Dye houses
Chrome and Zinc plating plants
Telecommunication Cable ducting

Application

Water supply (Suction & Delivery for Plumbing purpose) in residential as well as commercial premises

Table 01

Normal Pipe Size (in inch)	Outside Diameter (in mm)	Light Duty Schedule - 40		Light Duty Schedule - 80		Light Duty Schedule - 120
Normal Pipe Size (in inch)	Outside Diameter (in mm)	Wall thickness (in mm)	Pressure Rating (in kg/cm²)	Wall thickness (in mm)	Pressure Rating (in kg/cm²)	Wall thickness (in mm)	Pressure Rating (in kg/cm²)
1/2"	21.2	2.8	134	3.7	191	4.3	229
3/4"	26.6	2.9	108	3.9	155	4.3	174
1"	33.3	3.4	101	4.5	142	5.1	162
1 1/4"	42.0	3.6	83	4.9	117	5.5	134
1 1/2	48.1	3.7	75	5.1	106	5.7	121
2"	60.2	3.9	63	5.5	91	6.4	106
3"	88.7	5.5	59	7.6	84	8.9	100
4"	114.1	6.0	50	8.6	73	11.1	97
5"	141.0	6.6	44	9.5	65	12.7	89

Dimension of AMBA Unplasticlesed uPVC Pipes Conforming to Indian Standard Specification No. IS 4985 : 200

Table 02

Outside Diameter	Working Pressure / Wal Thickness
	Class-1 (0.25 MPa)		Class-2 (0.40 MPa)		Class-3 (0.60 MPa)		Class-4 (0.80 Mpa)
	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
50	-	-	-	-	1.7	2.1	2.3	2.8
63	-	-	1.5	1.9	2.2	2.7	2.8	3.3
75	-	-	1.8	2.2	2.6	3.1	3.4	4.0
90	1.3	1.7	2.1	2.6	3.1	3.7	4.0	4.6
110	1.6	2.0	2.5	3.0	3.7	4.3	4.9	5.6
125	1.8	2.2	2.9	3.4	4.3	5.0	5.6	6.4
140	2.0	2.4	3.2	3.8	4.8	5.5	6.3	7.3
160	2.3	2.8	3.7	4.3	5.4	6.2	7.2	8.3
180	2.6	3.1	4.2	4.9	6.1	7.1	8.0	9.2
200	2.9	3.4	4.6	5.3	6.8	7.9	8.9	10.3
225	3.3	3.9	5.2	6.0	7.6	8.8	10.0	11.5
250	3.6	4.2	5.7	6.5	8.5	9.8	11.2	12.9
