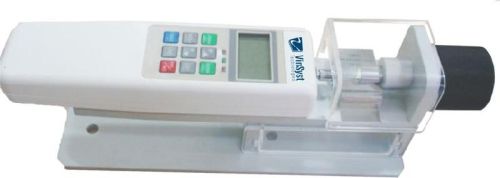

Vinsyst digital portable tablet hardness tester vtht series are a portable instrument which can measure the breaking point of tablets. The tester measures the compressive force with an accuracy of â± 0.5% and measures and displays the peak force used to fracture the tablets . The instrumental so reduces unnecessary costs to produce tablets out of specified hardness range. Vinsyst tablet hardness tester are ideally suited for the pharmaceutical, food, detergent, dairy, animal feed, pesticides and any other industries that requires compressed tablets.
specifications �
� capacity - up to 500n 50kgf
� resolution - 0.005n
� accuracy - Ⱡ0.5%
� tablet range - 2 ~ 28 mm
� display - lcd with backlight
� interface - rs-232
salient features �
hardness measurement by load cell up to 500 newtons
units of measurement in n, kgf and lbf
pc connectivity printer connectivity through rs232 port
programmable upper (t1) and lower (t2) tolerance limits
peak hold and auto release function
green and red light indication for better understanding
memory of upto 10 testing data
automated semi-calibration (zero-point adjustment)
display of 10 test value and calculate the average of the value.
Lcd display with back light
interchangeable display direction for better view
automatic power off function
acrylic glass safety cover with disposal container
tester operates on rechargeable battery
standard accessories: cleaning brush, storage case, 6v dc power adaptor, collection tray
optional accessories: iq, oq, pq documents, calibration weights, printer
delivery: ready stock or 3-4 weeks
price: rs. 70,000
