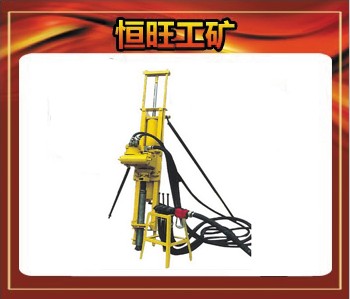

Whole Pneumatic DTH Drilling Rigs

We are offering whole pneumatic dth drilling rigs.
Widely applicable to small and medium-sized mining and transportation, national defense, water conservancy, stone and other projects, particularly applicable to other jumbo can't normal operation in bump rugged terrain.
this machine has simple structure, convenient operation, low cost, save energy. At the same time, it also has the function of the vertical and horizontal drilling blasting hole, especially the machine good low gravity detachable, relocation transportation is extremely convenient.
mdoel hqf110
apply to rock f=6～20
drilling diameter 68～130mm
vertical drilling hole depth 20m
rod specifications φ60*1000mm
maximum hoist capacity 7000n
working air pressure 0.5～0.7mpa
gas consumption 9～12m3min
rotary engine speed (light) 110～160rmin
pneumatic motor power 4kw
weight 260kg
