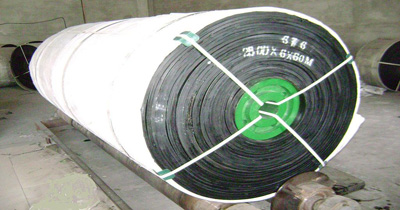

Wide Conveyor Belt

We could produce belting width MAX: 3000mm
type: NN/ EP/CC/STEEL
MPA: 9-25MPA
Detailed Product Description
1.plies:1-10ply
2:width:100-3000mm
3.thickness:3-50mm
4.Tensile Strength: 9-25MPA
5.quality control:ISO9001:2008
6. high-performance characteristic:resistance to abrasion
Usage:
used for transferring nubbly, grainy, and farinose things at a high speed in a middle and long distance with higher load.
Variety:
according to the performance of covered-colloid products can be classified into designated crack-resistant, designated wear-resistant, general, and resistance to acid-base, and anti-burning.
Features:
polyester conveyor belt used by the multi-layer polyester (or to the polyester, polyester weft for amine) bond canvas with a certain way, up and down the high-strength plastic cover, good wear-resistant flexible rubber.
Structure:
It uses polyester canvas as carcass, its structure is the same as General Conveyor Belt.
Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
types:
Besides General EP Belt, there are Fire-retardant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type, High-grade type and etc.
Models:
Ep80 Ep100 Ep125 Ep200 Ep250 Ep300 Ep400 Ep500 Ep600
The physical and mechanical properties of nylon conveyer belt and EP conveyer belt are as following:
1. The physical and mechanical properties of coverffig layer: please refer to the physical and mechanical properties of the common conveyer belt.
2. Tensile property of through thickness:
a. The longitudinal tensile strength is not lower than the following nominal value:
315 400 500 600 630 8OO 9OO 1000N/mm
b. The through thickness elongation rate of the belt should not less than rate of trough thickness of the belt should no more than 4%.
c. Straightness: no more than 25mm.
