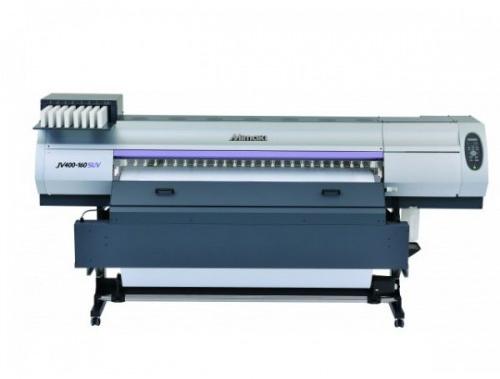

Contact SupplierWe are offering wide format printer.
Specifications :
head type on-demand piezo head (array of 2 heads in-line)
maximum width 1,610mm (63.4")
print resolution 600、900、1,200dpi
print speed high speed 18.1㎡h (900×900dpi、6pass, bi-directional, 4 color)
standard 14.2㎡h (900×1,200dpi、8pass, bi-directional, 4 color)
ink solvent uv ink su100 4 color ( c, m, y, k )
ink supply system 600 ml ink pack
media width up to 1,371mm (54.0")
weight up to 25kg (55.1 lbs)
roll diameter up to φ180mm (7.1")
inside roll diameter 2-3 inch
print aspect outside
cutter y-direction cutter after head section
drying device 3 way intelligent heater (preprintafter), ventilation fan unit
uv curing unit equipped with fluorescent uv tube lamp
media take-up device roll take-up device, insideoutside selectable
interface usb2.0
power specification ac 100~120v±10% or ac 200~240v±10%
power consumption 100 - 120v 1,440w × 2
220 - 240v 1,800w × 2
operational environment temperature: 20°c-30°c (68-86 °f);
humidity: 35-65 % rh (non condensing)
dimensions (w×d×h) 2,875×855×1,435mm (113.2"×33.7"×56.4")
weight 259kg (570 lbs.)
warranty 1 year
