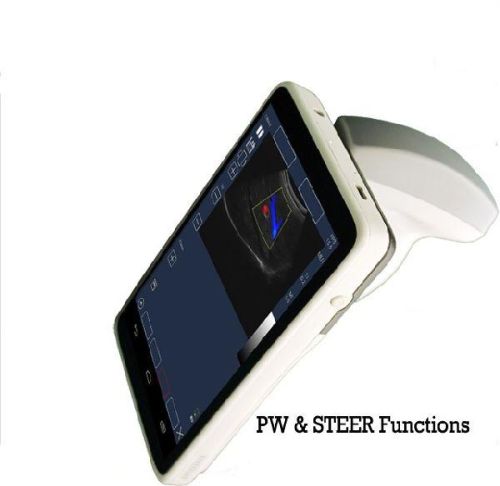

WIFI-Bluetooth-3G-4G Color Convex Ultrasound Machine
Imaging mode: B
Imaging System : PW & STEER
Frame rate: >=16 fps
Transducers: Electronically focused linear probe (5~10MHz) or convex probe (3~5MHz)
Element count: 128
Image depth: <= 6 cm for linear probe, <=20 cm for convex probe
Dynamic gain control range: >120 dB
Video replay: 32 or 64 fps
Depth control: Touch screen gesture
As small as an Iphone, SIFULTRAS-2.21 packs stunning technologies and innovations to offer convenient imaging whenever and wherever needed with PW and STEER FUNCTIONS.
SIFULTRAS-2.21 can be widely used in medical applications like hospital clinical treatment, emergency medicine, primary care, obstetrics and gynecology, guided procedures for injections, aspirations, vascular access, and line placement, as well as remote medicine. SIFULTRAS-2.21 fills in gaps of lack of ultrasound image equipment for basic medical institutions in China and the third world countries which includes the New high imaging functions PW and STEER.
Sifsof Convex , Probe Machine is designed with the latest with PW and STEER FUNCTIONS, as well, it plays more and more important roles for improving point-of-care, clinical diagnostic methods and efficiency of clinic diagnosis, due to its innovation features like WIFI-Bluetooth connections (3G/4G/Wfi), full touch screen and easy-to-use interface for non-radiologist usage, online and offline on-device technical training as well as remote cloud support for reading ultrasound image and guidance for operation.
· The world first pocket medical smart ultrasound scanner with high speed cellular and Wifi data communication capability.
· Clear and rapid imaging for intervention guidance.
· Special designed full touch UI for each individual application and easy to operation without special training.
· Automatically syncing data to private cloud for telemedicine and mobile telemedicine.
· Android sw operation system to make the applications easy for extendable.
· Enables ultrasound whenever and wherever necessary.
SPECIFICATIONS OF WIFI CONVEX ARRAY PROBE ULTRASOUND SCANNER, SIFULTRAS-2.21:
Ultrasound Acoustics
Gain control: Touch screen gesture and physical buttons
Image processing: wavelet filter, pseudo color, image smoothing and frame correlation
Measurement: Depth, length and area
Imaging system: PW and STEER FUNCTIONS
Measurement accuracy: <=0.5mm (axial), <1mm (lateral)
Image storage: Jpeg, Dicom
Device Electrical and Mechanical Spec
CPU: 1.2GHz Quad-core Cotex A9
OS: Android 4.3
Display: 6.0 inch with 720*1280 resolution
Touch screen: Capacitive TP
Imaging system: PW and STEER
Camera: 5M pixels
Memory: 1/2GB LPDDR2 + 8/16/32GB Flash
Cellular Network: Optional (3G/4G)
Connectivity: BT 3.0 EDR, WiFi & WAPI, GPS&AGPS
Radio: Stereo FM radio
Interface: Micro USB 2.0 HS (w/ charging), 3.5mm audio jack
Sensor: Accelerometer, P/L sensor, E-compass, Gyroscope
Keypad: Power, Freeze and Gain +/-
Battery: 5000mAh, up to 3 hours ultrasound continuous scans
Dimension: 158mmx84mmx20mm
