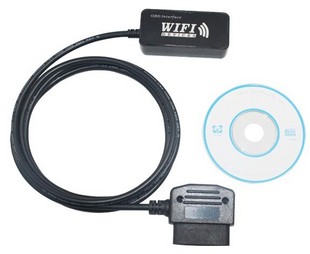

Wifi Obd2 Obdii Elm327

We are offering wifi obd2 obdii elm327 "support iphone, ipad, ipod touch,pcs
wifi obd auto checker
latest wifi the software install on iphone /ipod touch /ipad/ pc）
technical specifications：
ssid: wifiobd
ip: 192.168.0.10
subnet: 255.255.255.0
port: 35000
range: 50 ft (line of sight)
antenna: internal
power consumption: 0.75 watts (with power switch)
wifi standard: 802.11a/b/g
operating temperature: -15 to 100 deg celsius
plastic: automotive grade
physical dimensions: 2.75 x 1.25 x 1.2 inches
description：
wi-fi obd auto checker is capable of communicating with vehicles which adopt following protocols:
iso 9141
iso 11898(aka. Can)
iso 14230(aka. Kwp2000)
iso 15765(aka. Can)
sae j1939
wi-fi obd auto checker is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use at commands to communicate with a host device (pc, notebook, iphone, ipod touch, ipad and so on). There are plenty of software packages available, which are fully compatible with wi-fi obd auto checker. Some of them have pretty useful features, such as engine running parameters monitoring, dtc reading and clearing, mpg meter, etc. You can even write your own software on a specified hardware platform if you wish, because the at commands are fully documented and very well explained. Wi-fi obd auto checker is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft obdii cable for easy installation. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the obdii port. It is compatible with 1996 and later vehicles. Connecting to your iphone / ipod touch /ipad is made by wifi connection in adhoc mode.
Elder obd compatible vehicles has a sticker indicates that the vehicle is obd compatible. model year 1996 and newer vehicles are compliant by default, and will not have this sticker.
Following are some of the parameters which could be read from the vehicle.
Vehicle speed
rpm
fuel consumption*
engine coolant temp
fuel pressure
calculated engine load
throttle position
intake manifold pressure
air intake temp
timing advance
mass air flow
fuel level
barometric pressure
evap system vapor pressure
fuel trim
*note:
your vehicle may not support all above parameters. How many parameters you can get is depended on the vehicle manufacturer’s implementation.
vehicles supported：
our device works on all 1996 to 2010 cars and light trucks
acura
alfa romeo
ariel atom
aston martin
audi
bentley
bmw
buick
cadillac
chevrolet
chrysler
citroen
daewoo
daihatsu
daimler
dodge
ferrari
fiat
ford
geo
gmc
holden
honda
hummer
hyundai
infiniti
isuzu
jaguar
jeep
kia
lamborghini
lancia
land rover
lexus
lincoln
lotus
maserati
mazda
mclaren
mercedes
mercury
mg
mini
mitsubishi
nissan
oldsmobile
opel
pagani
panoz
peugeot
plymouth
pontiac
porsche
regal
renault
rolls-royce
roush
rover
saab
saleen
saturn
seat
scion
shelby
skoda
smart
subaru
suzuki
tesla
toyota
triumph
tvr
vauxhall
volkswagen
volvo
yugo
……
……
some 1994 and 1995 models are also supported. To see if your vehicle is compliant, pop the hood and look for this sticker:
compatible software and features:
what features you can have depended on what software you install on iphone /ipod touch /ipad/ pc. There are a lot of commercial or free software. The features of the software differ from one another. User should choose his own software by his preference. For more details about the software, please consult the software vendors.
Where can I get the software?
you can log on to the apple application store to get your commercial/free software. There is a freeware in the cd-rom comes along with the device. You can use this piece of software to config and test the wi-fi obd auto checker.
