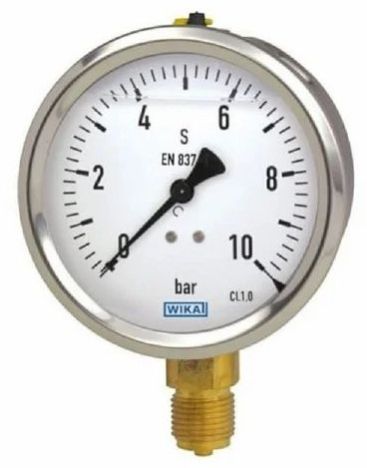

Wika 113.53 Analog Bourdon Tube Pressure Gauge

Applications:

• For measuring points with high dynamic pressure loads or vibrations
• For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
• Hydraulics
• Compressors

Special Features:

• Vibration and shock resistant
• Robust design
• Stainless steel case with liquid filling
• Scale ranges up to 0 ... 600 bar

Scale Ranges:

• NS 40: 0 ... 1 to 0 ... 400 bar
• NS 80, 100: 0 ... 1 to 0 ... 600 bar
• or all other equivalent vacuum or combined pressure and vacuum ranges

Pressure Limitation:

• Steady: 3/4 x full scale value
• Fluctuating: 2/3 x full scale value
• Short time: Full scale value

Permissible Temperature:

• Ambient: -20 ... +60 °C
• Medium: +60 °C maximum

Temperature Effect:

• When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
