Winch Drive

There are many other models can be provided. If you were interested, please contact with us.

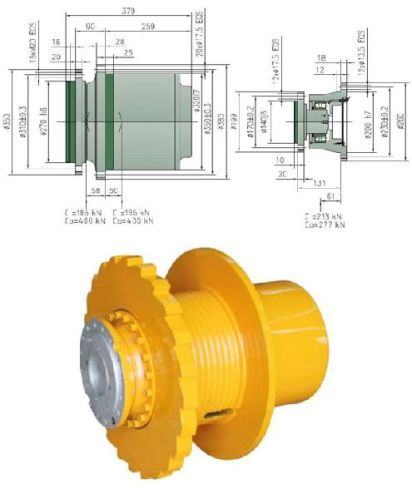

The technical datas of zft36w winch drive are listed in below:
1. Max output torque (t2mx nm):26000
2.ratio:32.57;38.43;47.21;66.96;79.36;87.78;100.02;116.55;131; 138.82;161.26;269
3. Hydaulic motor:linde,rexroth and other kinds of domestic and overseas motor are suitable.desing the connection interface between motor and planetary drive according to customer's requirements.
4. Planetary gearbox weightapprox.kg :185
(without hydraulic oil ,motor and drum)
note:
1. Planetary gearbox input direction is on contrary to the output direction.
2. For more ratios,please contact our technical department.
3. Cable drum can be designed and manufactured by customer as per the drawing or provided by our company.
4. Cable drum's minimum winding diameter≈φ440(the first layer's diameter).
5. If you require special drive solution which is out of the scope of our current products,please let us know,we will provide you with a modified design to better meet your requirements.
