Wind turbine

We are offering wind turbine

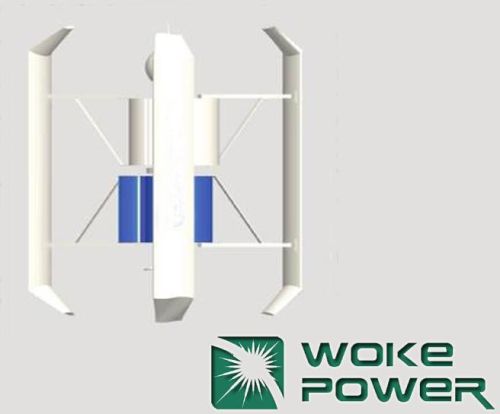

1kw vertical-axis wind turbine details:
advantage:
1, generating efficiency 60%~80%.
2, no need the empennage to change the directions, and always go clockwise
3, resistance capability is strong, can resist 12~14 class typhoon
4, safety coefficient is high, and the component is fixed safely.
5, no matter in urban, rural, or mountainous coastal areas, it is suitable for use.
technical parameter:
start-up wind speed (2m/s)
cut-in wind speed (3m/s)
rated wind speed (12m/s)
voltage rating 24v/48v(dcv)
rated power (1000w)
ultimate output (1100w)
blade height (120 cm)
fan blade amount (6+3pcs)
safe wind speed (60m/s)
weight of complete machine (35 kg)
working temperature -20 to 45 degree
maxim wind speed: ≤ 65m/s
maximum momentary wind speed: ≤ 70m/s
suggested mounting height: 3m~6m
2kw vertical-axis wind turbine
details:
advantage:
1, generating efficiency 60%~80%.
2, no need the empennage to change the directions, and always go clockwise
3, resistance capability is strong, can resist 12~14 class typhoon
4, safety coefficient is high, and the component is fixed safely.
5, no matter in urban, rural, or mountainous coastal areas, it is suitable for use.
technical parameter:
start-up wind speed (2m/s)
cut-in wind speed (3m/s)
rated wind speed (12m/s)
rated system output voltage 48v/96v(dcv)
power rating (2000w)
ultimate output (2200w)
blade height (160 cm)
fan blade amount (6+3pcs)
safe wind speed (60m/s)
weight of complete machine (160 kg)
working temperature -20 to 45 degree
maxim wind speed: ≤ 65m/s
maximum momentary wind speed: ≤ 70m/s
suggested mounting height: 3m~6m.
3kw new type wind turbine generator
details:
advantage:
1, generating efficiency 60%~80%.
2, no need the empennage to change the directions, and always go clockwise
3, resistance capability is strong, can resist 12~14 class typhoon
4, safety coefficient is high, and the component is fixed safely.
5, no matter in urban, rural, or mountainous coastal areas, it is suitable for use.
technical parameter:
start-up wind speed (2m/s)
cut-in wind speed (3m/s)
rated wind speed (12m/s)
voltage rating 48v/96v(acv)
power rating (3000w)
ultimate output (3300w)
blade height (180 cm)
fan blade amount (6+4pcs)
safe wind speed (60m/s)
weight of complete machine (200kg)
working temperature -20 to 45 degree
maxim wind speed: ≤ 75m/s
maximum momentary wind speed: ≤ 80m/s
suggested mounting height: 3m~6m.
5kw vertical-axis wind turbine with high efficiency
details:
advantage:
1, generating efficiency 60%~80%.
2, no need the empennage to change the directions, and always go clockwise
3, resistance capability is strong, can resist 12~14 class typhoon
4, safety coefficient is high, and the component is fixed safely.
5, no matter in urban, rural, or mountainous coastal areas, it is suitable for use.
technical paremeter:
start-up wind speed (2m/s)
cut-in wind speed (3m/s)
rated wind speed (12m/s)
rated system output voltage 110v/220v(dcv)
rated power(5000w)
ultimate output (5500w)
blade height (220 cm)
fan blade amount (6+4pcs)
safe wind speed (60m/s)
weight of complete machine (260kg)
working temperature -20 to 45 degree
maxim wind speed: ≤ 75m/s
maximum momentary wind speed: ≤ 80m/s
suggested mounting height: 3m~6m.
