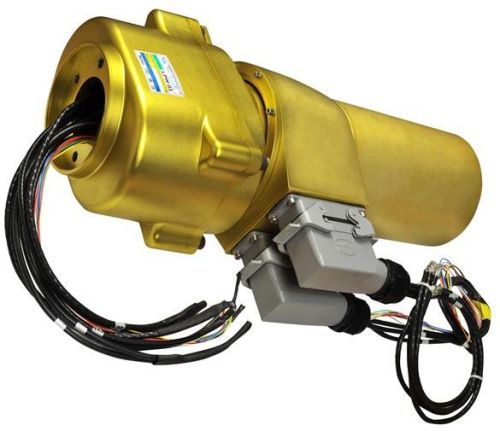

Wind Turbine Slip Ring

We offer wind turbine slip ring.
Description
this unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation.
this is constantly being extended in order to meet the development in signal and datatransmission. Jinpat has developed acom-prehensile standard programmed that is able to offer optimum solutions. The standard programmed enables the creation of slip ring bodies of any number of poles up to 100 for power and datasignal current.slip ring bodies can be supplied either as open slip ring bodies to be builtpercustomers‘ requirement or in a housing of impact-resistant plastic or sheet metal.
features
electrical data
compatible with data bus protocols
sealed units are available
control and data transmission
wiring and maxnumberof poles
more technical details
volume of delivery
flexible, color-coded, silver-plated, lead wires
precision ball bearings meet or exceed life requirements for most commercial applications
advantage
digital signals up to max. 500 kb
amperages up to 1200 a and voltage up to 24 kv
diameters > 10 m high rotation speed
extreme operating conditions
protection class: ip 65
main application
wind turbine generator
option
reinforced bearing
tube and rotary transmission
heating
vent plug
fiber data transmission
provide encoder according to different design model
