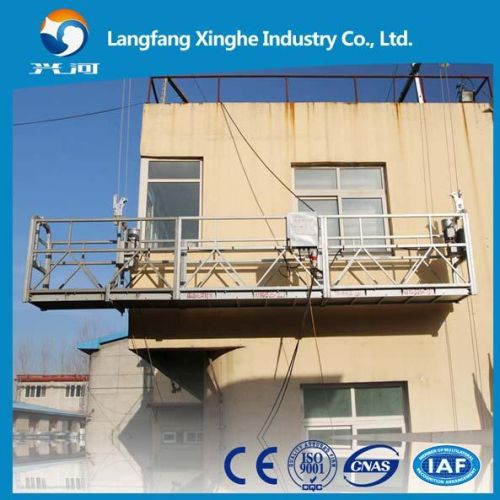

Aluminum hot galvanized Window Cleaning Cradle, Certificate : CE ISO

₹ 1.65 Lakh / 2180 2180 Set

MOQ1 Set(s)
MaterialAluminum hot galvanized
Load Capacity630KG 800kg
CertificateCE ISO
Applicationconstruction
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 1980

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

MaterialAluminum hot galvanized
Applicationconstruction
Country of Origin220v/380v/415v
Load Capacity630KG 800kg
CertificateCE ISO
Working speed9~11m/min 7~9m/min
Brand NameXinghe
Material of platformHot galvanized aluminum
Wire rope4*31SW-FC-8.3 8.6 9.1
HoistLTD63 LTD80
Rated Loading Capacity630kg 800kg
Safety lockTilt proof safety lock ( 2pcs)
Rated Load630KG 800kg
WarrantyThe whole machinery is for one year, some main components are 6 years
Surface TreatmentAluminum hot galvanzied
lifting height100m
Platform size3*2000/2500*690*1180mm
Model NumberZLP630 zlp800
Model Numberzlp630 zlp800
CertificationCE ISO

Powered suspended platform are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.
the welding of the support structure of the platform is made of quality steel profiles
the connection of the individual parts of the structure in each unit is made with nuts and bolts.
the powered suspended platform is equipped with wheels for easy movement around the construction site.
Specifications
1.zlp630 and zlp800
2.type:hot galvanized,aluminum
3.lifting height:100m maximum
4.with 9 years' experience.
Parts contains:
1. Platform(basket): steel or aluminum alloy (painted or hot galvanized)
2. Suspension mechanism: steel (painted or hot galvanized)
3. Electric hoists:ltd6.3 or ltd8
4. Safety lock: lst30
5. Electric control box: along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Electric cable: 3*2.5+2*1.5
8. Counterweights: cement , cement with steel cover & iron counterweight
9 spare parts
key points:
1. Max lifting height: 100m;
2. Main models: zlp500, zlp630, zlp800 & zlp1000;
3. Types: painted, hot galvanized, aluminum;
4. Voltage: 220v380v415v 5060hz 3 phass;
5. Couterweight: cement, cement with steel cover, iron-casting counterweight.;
6. H.s code: 8428909090;
7. Certification: ce & iso;
8. We can also customize for you.

Additional Information

Payment Terms L/C, T/TWestern Union
Port of DispatchTianjin
Packaging DetailsHoist and safety lock are packed in one plywood case, size 610*310*340mm; Control box/ control panel is packed in a plywood case,size 570*440*270mm; Other components are fastened by rope and then by pallet 20gp: 8sets; 40gp:20sets
Delivery Time5~7 days after receiving the deposit
