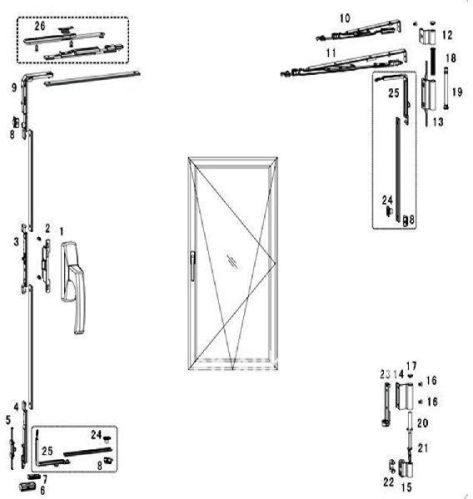

Contact SupplierWindow Hardware Aluminum Tilt &Turn Fitting, Sunsia ATT50 aluminum tilt and turn window fitting is a unique and functional European window, utilizing C profile system with is 15-20mm. Simply looking at this inward opening window, once can not tell that it has two functions. The window swings inward when opened like a casement,and is also a tip hung window. Moreover, this aluminum tilt and turn window fitting has 80kg loading capacity for each sash. Aluminum Tilt &Turn Fitting  Item  Name  Article NO.  Addition  1  Geared handle  AH50.22.01  Carrier fork length:22mm, silver  2-9  Transmission components  AD10.00  Normal transmission component package for Tilt &turn  10  Stay arm  ASA50.30  Suitable for the window sash groove width 355-600mm.  11  Stay arm  ASA50.50  Suitable for the window sash groove width 601-1000mm  12-23  Hinge components  AH50.01  hinge component package for 15-20mm groove, silver  24  Locking cam  ALC10.00   25  Corner transmission  AMCT10.00  Without locking pin  2026  Additional stay arm  AASA10.00  Suitable for the window sash groove width 1000-1700mm Window width: 355-1700mm, height: 500-2400mm, sash weight up to 100Kg. From 16 to 23 are in one fitting bag. ATT50 system, at the same time, you can choose ATT60. (Max. weight up to130Kg.)
