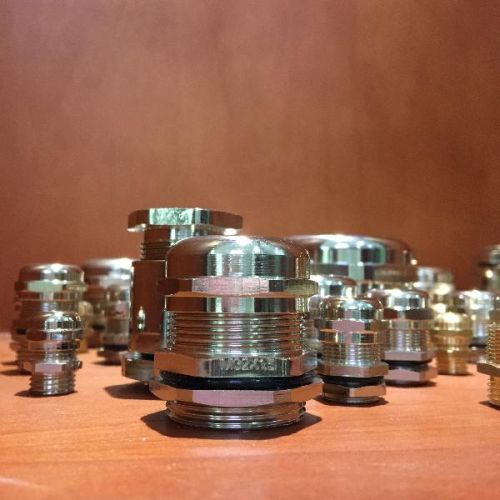

Wire Accessories

M8×1 hx-npm8 2-5 8 5 16 12
m10×1 hx-npm10 3-6.5 10 6.5 19 14
m12×1.5 hx-npm12 3-6.5 12 6.5 19 14
hx-npm12-8 4-8 12 6.5 19 14
m14×1.5 hx-npm14 4-8 14 8 19 17
m16×1.5 hx-npm16 4-8 16 8 20 18
hx-npm16-10 5-10 16 8 20 18
m18×1.5 hx-npm18 5-10 18 8 21 20
hx-npm18-12 6-12 18 8 21 20
m20×1.5 hx-npm20 6-12 20 8 22 22
hx-npm20-14 10-14 20 8 22 22
m22×1.5 hx-npm22 10-14 22 8 23 24
m24×1.5 hx-npm24 10-14 24 9 25 2427
m25×1.5 hx-npm25-14 10-14 25 9 25 2427
hx-npm25-16 12-16 25 9 27 27
hx-npm25-18 13-18 25 9 27 3027
m27×1.5 hx-npm27 13-18 27 9 27 30
m28×1.5 hx-npm28 13-18 28 9 27 30
m30×1.5 hx-npm30 13-18 30 9 29 3032
m32×1.5 hx-npm32 15-22 32 10 29 35
hx-npm32-25 18-25 32 10 29 36
m33×1.5 hx-npm33 15-22 33 10 29 35
m36×1.5 hx-npm36 18-25 36 10 31 40
m37×1.5 hx-npm37 18-25 37 10 31 40
m40×1.5 hx-npm40-25 18-25 40 11 31 4045
hx-npm40-30 22-30 40 11 35 45
m42×1.5 hx-npm42 22-30 42 11 35 45
m47×1.5 hx-npm47 25-33 47 11 37 50
m48×1.5 hx-npm48 25-33 48 11 37 5052
m50×1.5 hx-npm50 32-38 50 12 37 5055
m54×1.5 hx-npm54 32-38 54 12 38 57
m60×1.5 hx-npm60 37-44 60 13 38 64
m63×1.5 hx-npm63 37-44 63 14 38 6468
m64×2 hx-npm64 37-44 64 14 38 6468
m72×2 hx-npm72 42-52 72 16 42 78
hx-npm72-58 48-58 72 16 42 78
m75×2 hx-npm75 42-52 75 16 42 7880
m80×2 hx-npm80 55-62 80 18 45 88
m88×2 hx-npm88 65-70 88 18 45 94
m100×2 hx-npm100 78-84 100 20 45 110
material: brass, nickel plated
claw: pa
sealing and sealing ring: nbr
approvals: ce, rohs,reach
patent: national utility model patent, patent no. Is zl 2010 2 0530888.7
protection degree: ip68
temperature resistance: -40 ℃ to 100 ℃,short time to 120 ℃.
Function: extremely easy installation, simply insert cable through the assembled
gland and tighten gland locknut until cable is secured.
Alcohol,oil and common solvent.
