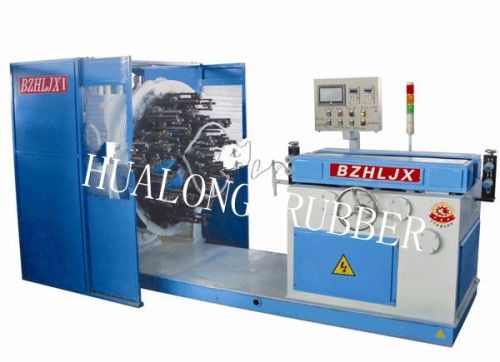

Wire Braiding Machine

we are offering wire braiding machine. 1.usage: steel wire braiding machine (stainless steel wire, carbon steel wire) braided around the tube, in order to improve the pressure resistance and wear resistance of the tube body.
2.model: gbg-24 ingot tube (g); knitting machine (b); steel wire (g); (24) the number of work spindle
3.structure and features: the machine using circular motion spindles for sinusoidal along the guide plate, the steel wire woven together according to certain rules, the steel wire tube mounted on the spindle, spindle is equipped with a spring steel wire has a certain tension wire in the tube body, making the network framework layer, regulated by the traction device and weaving speed, the braiding layer to 54°44 "of the braided angle.
