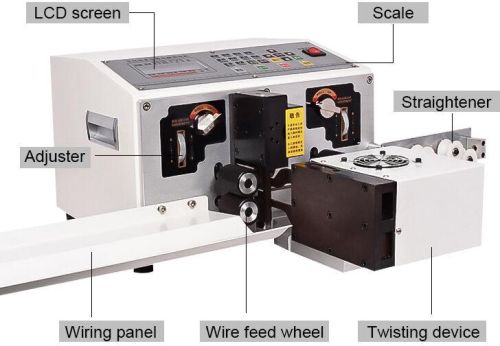

Wire Cutting , Stripping & Twisting Machine

\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r

\r Machine name \r	\r Automatic double wire twisted wire computer stripping machine \r
\r Machine type \r	\r IE-220T \r
\r Machine size \r	\r 680*570*280mm \r
\r weight \r	\r 38Kg \r
\r Supply voltage \r	\r AC110V-220V (50Hz/60Hz ) \r
\r Cutting length \r	\r 0.1 ~ 99999.9 mm \r
\r Stripping length \r	\r 0.1mm-99mm (depending on the cable) three sections can be peeled to 999mm \r
\r Twisted length \r	\r 0.1mm-99mm depending on visual wire) \r
\r Twisted wire system \r	\r Correct twist before and after, reverse twist any setting \r
\r Cutting core \r	\r AWG14#~AWG32#(depends on wire material and structure) \r
\r Conduit diameter \r	\r 2mm, 3mm, 4mm, 5mm, 6mm (the catheter can beat) \r
\r Tool material \r	\r Tungsten or high speed steel \r
\r Mode of operation \r	\r Button +192*64 dot matrix screen \r
\r Driving mode \r	\r 2 phase hybrid stepping motor \r
\r Working speed \r	\r 13000 pieces/hour (100mm long, 3mm full strip evenly front and back) \r
\r Can be processed wire \r	\r PVC,VSF, Teflon, Fiberglass, etc \r
