Wire Mesh Cable Tray

Wire mesh cable tray - galvanized or powder coated surfaces
wire mesh cable tray supplies a point-to-point pathway for cables. Made of high quality steel wire and welded into 2" × 4" rectangular grid pattern. The grid is formed into u shaped channels, which supports and carry cables. The hole pattern design make it possible for the cables to pass through and go up and down.
Compared with fiberglass cable trays, the wire mesh cable tray has higher tensile strength and mechanical strength. The material of wire mesh cable trays are various, including carbon steel with various surface furnish and stainless steel. Different surface finish can suit different applications, you can refer to the below chart and choose the perfect one you need.
Surface finish of wire mesh cable tray
surface finish suit material standard thickness
pre-galvanized carbon steel astm-a6553
electric galvanized carbon steel en 12329-2000 minimum 8 microns and average is 12 microns
hot dipped galvanized carbon steel en 1461-1999 above 60 microns
powder coated carbon steel en: 10309-1999 above 50 microns
pickled stainless steel
passivated stainless steel
electrolytic polishing stainless steel
a stainless steel wire mesh cable tray on the gray background.
Wmct-01: stainless steel wire mesh cable tray.a black color wire mesh cable tray on the gray background.
Wmct-02: powder coated surface wire mesh cable tray.

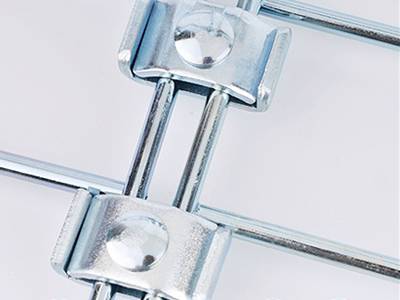

We can not only supply the wire mesh cable trays, we can also supply all kinds of wire mesh cable tray accessories for easy and fast installation. The main accessories are including connection system, supporting system and installation system. Different accessories can be used in different positions for different functions. These accessories can ensure the wire mesh cable tray solid, firm and high strength.
A wire mesh cable tray is installed onto the ceiling by m shape bar.
