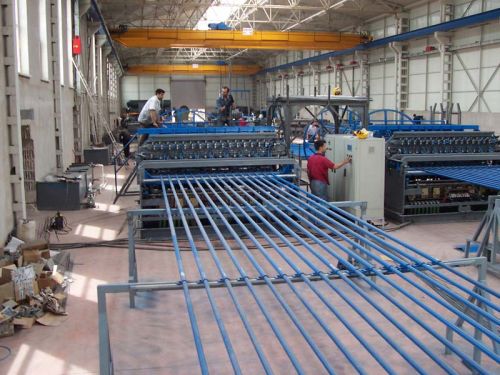

Contact SupplierWe are offering wire mesh welding machine.
Diameter to weld : æ4mm-æ8mm
type of wire : cold rolled wire
wire mesh width : 2400mm (max.)
wire mesh length : 6000 mm (adjustable)
distance between cross wires : 150mm (min )- 250mm (adjustable )
distance between longitudinal wires : 50mm (min )- 250mm (adjustable)
driving unit : 7,5 kw. Servo motor with its controller
wire feeding control : servo control
total power : 8 units x 120 kva
welding current control : all process is under plc control. In welding process the current time and current can be changed .
Cooling arrangement : the system will be colled by 20 c in 4 bar and 90 ltmin water flow rate .
Air pressure : 6bar
voltage : 380v 50 hz
wire feeding : longitudinal rods will feeding by manually & transverse ( cross) rods will feeding automatically by the machine.
