Wire Recycling Equipment

We are offering wire recycling equipment. Product parameters
model： qy-600a
name： qy-600a
help：

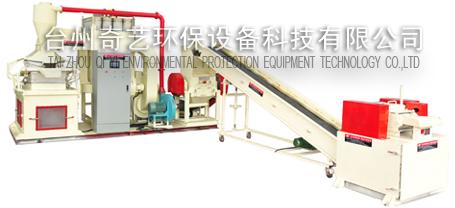

dv dry-type copper recycling production line:
the whole production line has unique structure，big process capacity and low power consumption。with high separation rate，controlled by plc，the separation is conducted by several parts。this equipment has not only improved the purity of copper，but also reduced the pollution to the environment。
craft diagram:
features：
suitable structure and layout, easy to install。
plc system makes it easier to control the whole line，convenient to feed and operate。
the crusher adopts double roller，low speed, high tear produces big output while little noise。
the design of separator and dust collector is handy for movement or transport。
the rotor of the grinder is alternating，leading to more efficiency，faster discharging，lower noise and more steady running。
the separation rate of air separator can reach at least 99%。
feedback system will do the second crushing to the unfinished material, which guarantee the totally separation of metal and non-metal。
dust-collector can prevent the leak of dust, the dust-cleaning rate can reach 99.99%。
display:
crushing part：
txechnical parameter
processing diameter
φ0.5-φ20mm
overall dimension(lxwxh)
750*500*310cm
machine weight
5000kg
motor voltage
380v220v
output (10h)
4000-6000kg
motor power
73kw
