Wire Rope

Aircraft cable consists of thin steel wires that are stranded together to give the cable a combination of flexibility and strength. Although the largest diameter of aircraft cable available at Tyler Madison maxes out at a ¼”, it is lightweight and strong enough to meet special airline safety standards.
Commercial quality "aircraft grade" cable is made from galvanized steel wire or stainless steel wire. Galvanized aircraft cable provides high tensile strength and adequate corrosion resistance for most commercial applications. Stainless steel cable provides slightly lower tensile strength, but greater resistance to corrosion.
Cable or wire rope is fabricated from individual wires put together in a uniform helical arrangement to form what is called a strand. A strand typically contains 7 wires (1 x 7) or 19 wires (1 x 19), although others are available. Cable or wire rope contains a varying number of these strands such as 7 x 7 and 7 x 19 (number of strands x wire per strand). The more strands and more wires per strand, the more flexible the cable and the higher the cost. The greater the cable diameter, the greater the diameter of each wire and the greater the breaking strength.

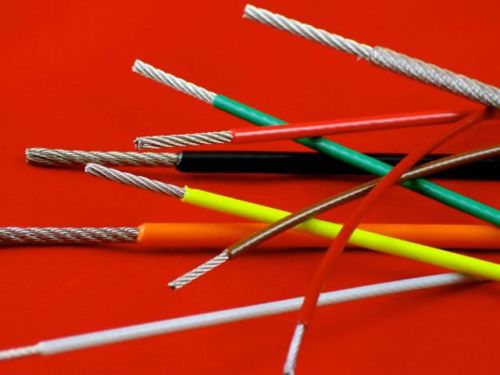

All steel cable can be coated with a number of different plastics such as vinyl (PVC) or nylon in various colors. Black, clear and white are typical stock colors, other colors can be ordered. Also, other polymers are available.
Military Specifications-Cable also available to Mil-W-83420.
Aircraft cable is used for more than just aircraft applications. It’s strength and flexibility make it perfect for numerous commercial and industrial uses. Stainless steel aircraft cable is typically used in areas where the components are exposed to oxidative chemicals such as salt, and the ability to resist corrosion is crucial. Galvanized aircraft cable is a more affordable solution, but it does not resist corrosion as well.
