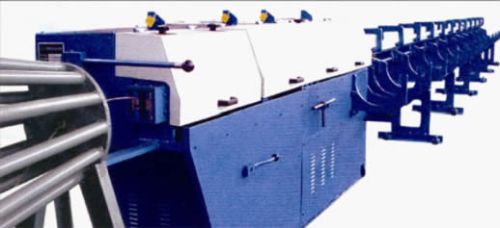

Wire Straightening Machine, Cutting Machine

We are offering Wire Straightening machine, Cutting MachineWire straightening and cutting machine can be used as a stand-alone machine or in combination with wire drawing machines or mesh welding machines. It is wildly applied in automobile industry, metal processing industry, fabrication works and electrical industry.
Two types are provided to meet with your particular requirements.
Straightening and cutting machine for ribbed wire
Straightening and cutting machine for cold drawing wire
Straightening and cutting machine for ribbed wire
This machine is developed for cut-to-length rods with accurate length and good surface quality. The cutting system has two types. One by pneumatic clutch is suitable for mesh welding machines, and the other by servomotor-driven flying shear is ideal for frequent rod length changes. It is stilled equipped with a freely programmable control system for easy operation.
Technical parameters:
Components Technical specifications
Wire diameter �� 6 - 12 mm for round wire and cold-rolled ribbed wire
�� 6 - 10 mm for hot-rolled ribbed wire
Straightening speed 75-100-130 m/min
Scope of length 800mm---12000mm(also can be adjusted by customers)
Linearity of straightening ��2mm/m
Cut-to-length tolerance ��1mm
Total rated power 26KVA, 380V-60Hz
Total weight 4 tons
coil pay-off Vertical plate, With brake system by compressed air
trumpet Bell-mouthed
straightening unit Straightening blocks, turning unit
Cutting unit Special mechanical unit, clutch by compressed air
Discharge and collect unit 12 m in length, driven by compressed air
Signal seat for cutting
Straightening and cutting machine for cold drawing wire
Applied for cold drawing wires - ferrous and non-ferrous. Wires can be cut to the desired length automatically.
Technical parameters:
Wire diameter: 3.5 ~ 6.0 mm
Scope of length: 3000 ~ 8000 mm
Straightening motor: 3KW
Cutting motor: 1.5KW
