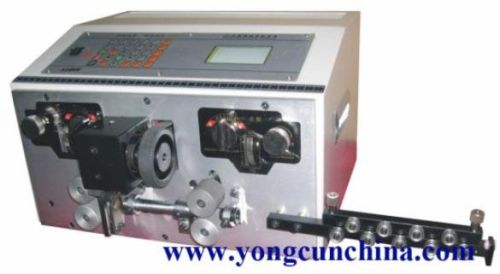

Wire Stripping Cutting Machine, Brand Name : YONGCUN

We are offering wire stripping cutting machine-04 (single core hard wire and big wire type)
feature:
1)the longest length can cut 99999mm.
2) supports up to 15 intermediate stripping, and the stripping length can be set.
3) support up to 3 layers of stratified stripping , it's suitable for coaxial and sheathed cable.
4) the most store data is 99 programs,it can easily and quickly tranfer the process setting.
5) it's suitable for awg6-awg32 wires. The more bigger wire can be furniture.
model no:ycm1005a
available core cross-section range:0.1 - 16m㎡(the max furniture is 25m㎡)
max cable diameter:￠10
cutting length:1-99999mm
the length of stripping wire head:0.1-50mm
the length of stripping wire back:0.1-30mm
memory function:the most store data is 99 programs
the function of stripping layer:3 layers
the middle max of stripping section:intermediate can be divided into 15 stripping, the length can be adjusted.
Cutting tolerance:±(0.002*l)(l=cutting length)
speed:8000pcs/hour l=50mm
drive speed:adjustable
display:lcd display with english menu
drive mode:four wheels drive
blade material:hard tungsten steel
appropriate wire:suitable for kinds of wires,such as pvc,teflon,glass wires etc
power supply:220v/50hz 110v/60hz
power rating:180w
appearance size: 420*297*345mm
weight:31kg.
