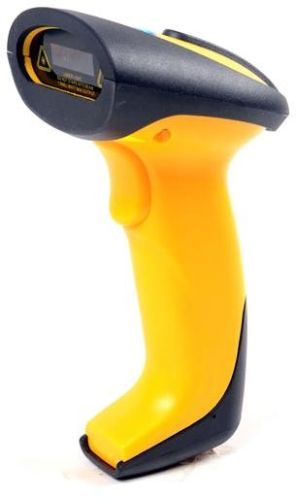

Contact SupplierWe are offering wired 2d barcode scanner. Light source type optical imaging; the wave length is 620mm.
imaging sensor cmos
image resolution 752 x 480 pixels
barcode precision ≥ 5mil
printing contrast ratio ≥ 30%
bacode type 2d "pdf417, qr code(model 12),
data matrix(ecc200, ecc000,050, 080, 100,140), aztec, maxicode, etc."
1d "code 128, ean-13, ean-8, code 39, upc-a, upc-e, codabar,
interleaved 2 of 5, isbn, code 93, uccean-128, gs1 databar, etc."
scanning speed 300timess
scanning angle clockwiseanticlockwise ±55°
up and down ±25°
left and right ±75°
interface on scanner rj-45
external dimensions(l x w x h) 92.5×70×154.6 mm
weight 140g
prompting mode buzzer and led indicator
maximum power consumption 1750mw
working voltage dc5v
electric current maximum current 350ma
working current 325ma
standby current 53ma
accessaries
cable usb data cable (1.8m)
manual 1
environment
storage temperature -40°c ~ 60°c
work temperature 0°c ~ 50°c
relative humidity 0 ~ 95%
anti-knock working fine after fall from 2m height
ip ip52
certificates
ce rohs iso9001:2008 iso14001:2004
