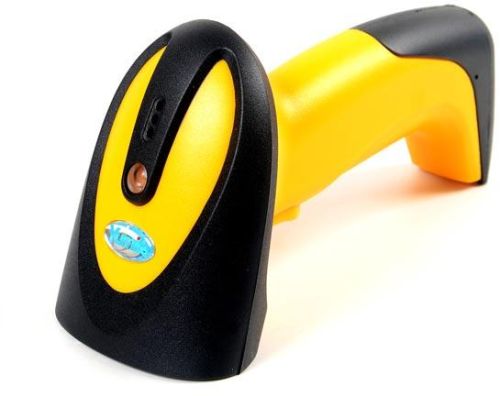

Wired CCD Barcode Scanner

We are offering wired ccd barcode scanner ce,rohs,iso9001.
Light source type optical imaging; the wave length is 650mm.
Trigger mode manul
scanning mode single-line scanning
scanning speed 250ã�â±2 times s
resolution ã¢ï¿½â¥4mil
printing contrast ratio the lowest reflectivity difference is 30ã¯â¼ï¿½.
Bit error rate 150million
input voltage 5vdcã�â±0.25v
power 250mw (work): 500mw (momentary maximum)
current 50ma (work): 100ma (momentary maximum)
standby current ã¯â¼ï¿½20ma
light intensity 3000-12000lux
depth of field 10mm-630mm
scanning angle ã�â±60ã�â°ã�â±65ã�â°ã�â±42ã�â° (left and right, front and back, rotation)
decoding capacity upceanjan, upcean with supplemental, uccean 128, code 39, msi, code11
code 39 full ascii, code 39 trioptic, code 128, code 128full ascii
codabar, code93, discrete2of5, iata, rssvariants, codabar, chinese2of5,
international general dimensional barcodes, e.g. Inteleaved25, interleaved2of5,china postal service code and so on
promotion mode buzzer and led indicator
cable interface usb (standard): ps2 and rs232 are selectable.
External dimensions l*w*h: 158mm*68mm*96mm
weight 170g
cable standard straight line,2m
charging interface type rj-45 crystal head
hull material abs+pc
temperature 0ã¢ï¿½ï¿½ to 50ã¢ï¿½ï¿½ (work): -40ã¢ï¿½ï¿½ to 60ã¢ï¿½ï¿½ (storage)
setting mode manul (scanning and setting barcodes according to the sequence)
safety regulations laser safety class: en60825-1, class 1, state level-i laser safety standard
emc: en55022,en55024
electrical safety: en60950-1
packaging level: ip52
anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times.
