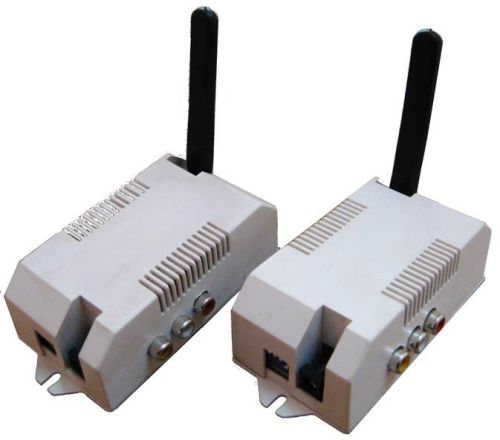

Contact SupplierWe are offering wireless audio video transmitter receiver 8 channels.
Fbxwav8tx
operation type: transmitter
operating frequency: 5.8ghz
channel frequencies: 5725mhz, 5745mhz, 5765mhz, 5785mhz,
5805mhz, 5825mhz, 5845mhz, 5865mhz
output rf power: +23dbm
operating voltage: +7.5vdc to +24vdc
operating current: 330ma (max)
video input signal: 1 vp-p
audio input signal: 1 vp-p
video rf deviation: 1.2mhz
audio rf deviation: 70khz
operating temp: +20 to 60c
storage temp: -40 to 80c
output connector: rca
antenna: whip, 50 ohms termination
fbxwav8rx
operation type: receiver
operating frequency: 5.8ghz
channel frequencies: 5725mhz, 5745mhz, 5765mhz, 5785mhz,
5805mhz, 5825mhz, 5845mhz, 5865mhz
receiver sensitivity: -85dbm
operating voltage: +7.5vdc to +24vdc
operating current: 210ma (max)
video snr: 40dbm (min)
audio output freq: 100hz to 20khz
audio signal level: 2 vp-p
operating temp: +20 to 60c
storage temp: -40 to 80c
output connector: rca
antenna: whip, 50 ohms termination
range of communication:
100-150meters (depending on site conditions).
