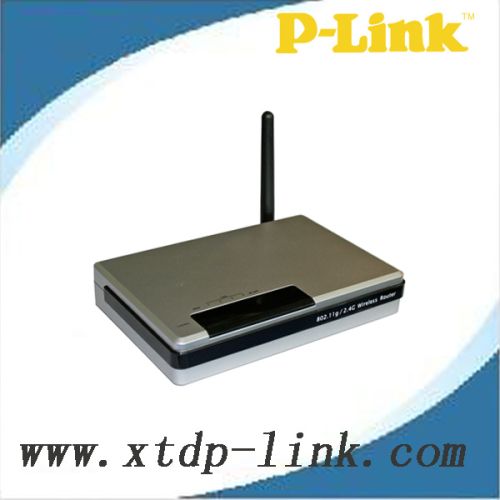

Wireless Broadband Router, Brand Name : P-Link

Product Description
The high-speed wireless router provides the expanded user bandwidth for applications like video streaming on wireless LAN. The router connects to the Internet through a broadband DSL or cable modem. User access control functions and firewall protection are provided. 4 10/100BASE-TX switch ports are built into this router for ready Ethernet workstation/server connections.
Features
ï?¬ Remote router with 802.11g wireless LAN interface
ï?¬ Cable/DSL modem Internet sharing
ï?¬ Wireless LAN speed up to 54Mbps
ï?¬ 10/100BASE-TX port for DSL/cable modem connection
ï?¬ 4 built-in 10/100BASE-TX switch ports with auto MDI/MDIX support
ï?¬ Firewall features include NAT with VPN pass-through, MAC/IP/URL filtering
ï?¬ Web-based configuration with setup wizard for quick installation
ï?¬ Built-in DHCP server
Specification
Protocol and standard IEEE 802.11n draft 2.0, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
CSMA/CAã??CSMA/CDã??TCP/IPã??DHCPã??ICMPã??NATã??PPPoE
Modulation 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11b: 11, 5.5, 2, 1 Mbps
Interface LAN 1*10/100/1000M Auto MDI/MDIX RJ-45
WAN 1*10/100M Auto MDI/MDIX RJ-45
Wireless parameters Frequency USA (FCC) 11 Channels: 2.412GHz~2.462GHz
Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Japan 14 channels: 2.412GHz~2.484GHz
Transmit Rate 802.11b: 1,2,5.5, and 11Mbps
802.11g: 6,9,12,18,24,36,48 and 54Mbps
802.11n: up to 300Mbps
Channel USA 11, Europe 13, Japan 14
Receiver sensitivity 300Mbps Typical-68dBm
54Mbps Typical-73dBm
11Mbps Typical-84dBm
Transmit Power 16dBm typically @ 802.11b
14dBm typically @ 802.11g
13dBm typically @ 802.11n
Range coverage Indoor 35~100 meters
Outdoor 100~300 meters
Security 64/128-bit WEP Encryption
WPA (Wi-Fi Protected Access)
WPA2 (Wi-Fi Protected Access 2)
Antennas One wireless Reverse SMA detachable antennas (Standard 2dB)
Network Cables 10Base-T:3,3e UTP
100Base-TX:5 UTP
LED indicator Each port Link/Act
System PWR,SYS,WLAN
Dimensions 94 x 70 x 20.8 mm
Weight 77.8g
Environmental Conditions Operating Temperature: 0°C ~ 40°C (32°~104°F)
Storing Temperature:-10°C ~ 70°C (14°~158°F)
Operating Humidity:10% ~ 90% RH non-condensing
Storing Humidity:5%~90% RH non-condensing
Certification FCC, CE, VCCI Class B
