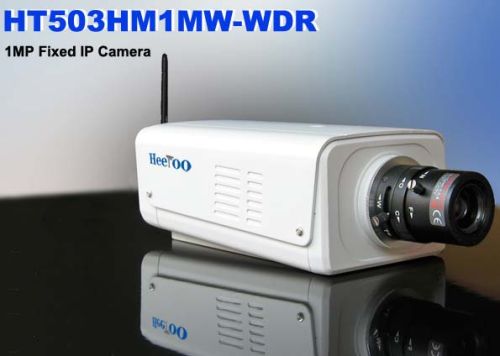

Wireless Camera

Cpu& system
arm9 32-bit risc processor
working frequency up to 500mhz
high performance soc processor
video & image settings
h. 264 baseline profile @ level3.1 encoding
support h. 264 various image resolution and data flow and output
cbr/vbr bit rate control, 32 kbit/s ~ 20 mbit/s
configurable brightness. Contrast, saturation, sharpnee
image resolution
720p(1280x720), 320x180
frame rates:
up to 25fps (pal)
up to 30fps (ntsc)
m-jepg: up to 25fps@720p(1280x720)
h. 264: up to 25fps@720p(1280x720), up to 30fps@svga(800 x 600), up to 30fps@400 x300
mpeg-4: 30fps@svga(800 x 600)
audio
g. 726 audio encoding
g. 711audio encoding, u-law or a-law
support two way audios
audio input, audio output
high sensitivity mic input
configurable audio output streaming
networking protocols
tcp/ip udp dhcp http pppoe ddns dns ftp rtp/rtcp/rtsp upnp smtp sip
camera
image sensor
1/3" wdr cmos sensor
minimum iiiumination
0.5 lux /f1.0(colour) 0.01lux/f1.2(black& white)
electronic shutter: auto
agc: auto
white balance: auto
support image flip
colour image turned black and wihte image: auto
alarm and event management
ftp upload image or video
alarm triggered e-mail notification
alarm triggered local storage sd card
two i/o alarm input
one relay control output(one group normally on/closed switch)
two channels alarm input (switch quantity signal), 1 channel relay control output
(one channel on, another channel closed contacts);
1 channel rs485 communication interface
sd card port microsd (t-flash)
1 channel simulation signal output
1 channel 12 v dc power input
1 channel line-in, 1 channel line out
1 channel mic input
others
support sd card storage, up to 32g
ftp upload videos, pictures
support 3g mobile monitoring
support various ptz protocol
password protection
alarm trigger email notification
alarm trigger video tapes, alarm, alarm triggered linkage
complete network protocol, built-in web, support ie, configuration, visit to upgrade
supports firmware upgrade
viewing system requirements
brower: mozilla firefox, internet explorer 6. X or above
os: windows2000, xp, vista, win7
support sdk and software integration development
provided based on linux sdk setups, cms software
provide h. 264 high-performance pc decoding library
ocx control
support personalized ie interface customization and modify
support custom individualized application functions
operating environments
temperature: -10~55celsius
humidity: under 85%
physical specifications
power consumption: max. 5w
operating voltage: dc12v
measurement: 146mm(depth)× 79mm(width)× 57 mm(height)
wireless distance: 100 meters (open area, no interference)
weight: net weight1.3kg, overall weight2.3kg
packaging: carton
