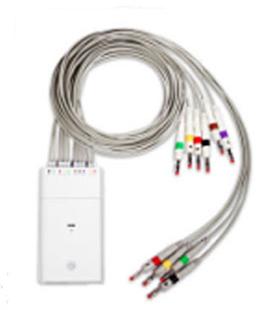

Wireless Mobile ECG Monitor 12 Channels SIFECG-2.1

₹ 1.13 Lakh / Piece

MOQ1 Piece(s)
Brand Namesifsof
CertificationCE ISO13485
Number Of FlowerWireless Mobile ECG Monitor 12 Channels SIFECG-2.1
Wireless Mobile ECG Monitor 12 Channels SIFECG-2.1Simultaneous 12 leads ECG acquisition and display (display format: 12*1,6*2,6*2+1R,3*4+1R,3*4+3R)2
Supply TypeExporter, Supplier
Preferred Buyer Location All Countries Except India

SIFECG-2.1 WIRELESS BLUETOOTH MOBILE ECG MONITOR The first professional elEctrocardiogram (ECG) product developed on iOS portable devicE Automatic measurements and interpretations WiFi and 3G....

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

SIFECG-2.1 WIRELESS BLUETOOTH MOBILE ECG MONITOR The first professional elEctrocardiogram (ECG) product developed on iOS portable devicE Automatic measurements and interpretations WiFi and 3G compatible.

Bluetooth ECG Monitorâ��, Handheld ECG Tag: SIFECG-2.1

WIRELESS MOBILE ECG MONITOR 12 CHANNELS SIFECG-2.1 SPECIFICATIONS

1 Simultaneous 12 leads ECG acquisition and display (display format: 12*1,6*2,6*2+1R,3*4+1R,3*4+3R)2 FIR digital filter to ensure no waveform distortion while eliminating all strong interference3 Precise ECG auto-interpretation program4 Multiple printing formats (optional color printing): five kinds in landscape and five kinds in portrait.5 Export ECG report in PDF/ JPG/ XML format
6 Easy operation, only three hotkeys for ECG acquisition: F1 “Sample”, F2 “Stop” and F3 “Print”
7 Powerful database management system for hundreds of thousands of ECG reports
8 Be able to connect to ECG network management system
9 ECG comparison, electronic magnifier and manual measurement with an electronic ruler of high precision

Input Circuit	Built-in defibrillator protection	Patient Leakage Current		<10µA (220V-240V)
Lead	Standard 12 leads	Patient Auxiliary Current		<0.1µA (DC)
Acquisition Mode	Simultaneous 12 leads acquisition	CMRR		>90dB
A/D Converter	12bits	Rhythm Lead		Any lead selectable
Measurement Range	±5mVpp	Filter		EMG Filter:20 Hz / 30 Hz / 40Hz DFT Filter: 0.15 Hz / 0.25 Hz / 0.5Hz AC Filter: 50/ 60Hz
Time Constant	≥3.2s	Filter
Frequency Response	0.05Hz~150Hz(-3dB)	Dimension		126mm×68mm×25mm
Calibration Voltage	1mV±3%	Weight		120g
Sensitivity	5 mm/mV, 10 mm/mV, 20mm/mV	Safety Standard		IEC II/CF
Input Impedance	≥50MΩ	Sample Rate		Normal: 500sps/channel Pacemaker: 10,000sps/channel
Input Circuit Current	<0.05µA	Bluetooth Transmission Distance		10m
Anti Baseline Drift	Automatic	Bluetooth Transmission Speed		115200bit/s
PC Requirement:
PC Requirement
Operation System	Windows 2000/Windows XP Windows Vista Windows 7(32 bits,64 bits)	CPU	Pentium P4,Celeron D 310 or above
RMA	≥ 512MB	HDD	≥ 40G
