place of origin:china

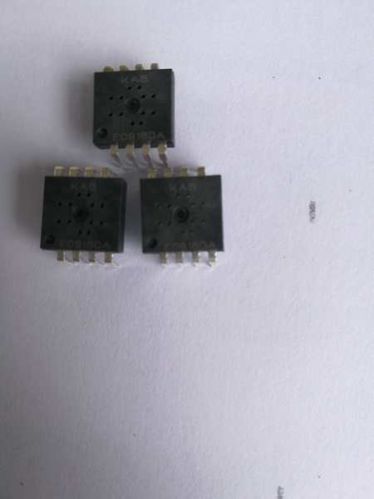

model number :ka8
type :drive ic
supply voltage :1.73v ~ 1.94v (vdd and avdd short) 2.2v ~ 3.2v (vdd)
●signle power supply
●power range 1.7v -3.2v
●precision optical displacement prediction technology
●very good 2-d motion sensor
● support extremely fast moving speed
● maximum speed of movement 28 inch/sec cpi
●cpi: maximum 1600
●once stop moving, immediately enter the energy saving model
● data transmission is achieved through serial interfaces
●built-in low power timer (lpt),sleep1/sleep2 models
●the mouse can be awakened by the motswk pin, and the sensor is
controlled to wake up from the sleep mode.
● built-in oscillator
●led current-limiting resistance 68-470
ohm(determine by the actual plane),recommend 100 ohm.
● dip8 package
