Wireless Products

We are offering wireless products.
specifications of wifi:
model: cp823
standards: ieee 802.11n, ieee 802.11g,ieee 802.11b,csmaca with ack
port: sdiogspi
frequency range: 2.4~2.4835ghz
channel: 1-14(optional usa norm, en, japanese norm)
modulation type: 802.11 gn: ofdm 802.11b: cck(11, 5.5mbps), qpsk(2mbps), bpsk(1mbps)
transmission rate: 802.11b: 11,5.5,2,1 mbps; 802.11g: 54,48,36,24,18,12,9,6 mbps; 802011n: max 150mbps
receive sensitivity: indoor up to 30m,outdoor up to 80m(base on the environment)
rf rate: 16dbm(maximum)
antenna gain: need external antenna
spread-spectrum technique: dsss(direct sequence spread spectrum)
working voltage: dc 3.3v ±0.2v
dimension: 12mm*12mm*2mm
working environment: working temperature: -20℃ to 45℃
storage temperature: -40℃ to 70℃
operating humidity:10% to 90%rh noncondensing
storage humidity: 5% to 90%rh noncondensing
supported os: windows 2000xpvistawin 7linux

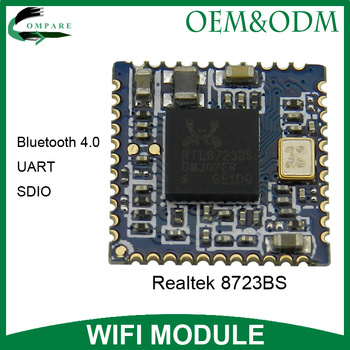

chip: realtek rtl8723bs
specification of bluetooth:
model: cp823
interface type: uart(2g3g calling need connect pcm port)
bluetooth transmission protocol: bluetooth v2.1+edr bluetooth3.0bluetooth 4.0
frequency range: 2.402ghz - 2.480ghz
working channel: 0-78
modulation type: gfsk,dpsk
transmission distance: indoor up to 10m,outdoor up to 20m(base on the environment)
rf rate: 8dbm(maximum)
antenna gain: need external antenna(can share with wifi antenna)
spread-spectrum technique: frequency hopping
working voltage: dc 3.3v ±0.2v
supported os: windows 2000xpvistawin 7linux
chip: realtek rtl8723bs
