Wireless Thermometer

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

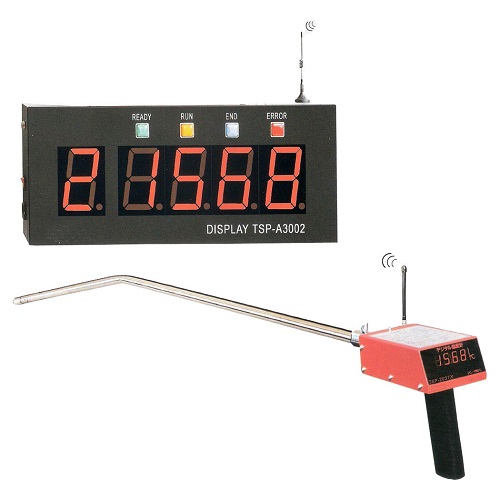

Wireless Thermometer for Casting Industry to Measure Molten Metal Temperature Wireless Thermal Measurement System adopts portable digital thermometer as signal gathering and sending part to transfer the value to receiver (large screen display, wireless printer) within 100 meters by radio wave to carry on recording and displaying. Such system is applicable for the situation featured with wide thermal range, hard cable installation but temperature record needed to facilitate data record and spot quality management.

View More Details

Send Enquiry

Specification

Equipment 1	Thermometer (Wireless)	Transfer Frequency	433 MHz
Code	TSP-203TX	Display Way	Red LED (420×140mm)
Thermocouple Tip	R	Power	AC220-240V / 50W
Test Range	0—1760
Test Precision	+/- 0.1%	Work Tem.	0—45
Distinguish Precision	1	Work Humidity q	20—80% (RH)
Test Way	Automatically search, peak keep	Color	Black
Transfer Frequency	420 MHZ	Size & Weight	690×280×100mm / 10kg
Transfer Distance	Straight Line 100M	Equipment 3	Data Recorder
Power Spec.	4.8V (Electrification)	Code	TSP-N700
Work Tem.	0—45	Function	Moveable Recorder
Work Humidity	20—80% (RH)	Transfer Distance	Sight 800m
Color	Red	Work Tem.	-10 —50
Size & Weight	90×152×52mm / 1.5kg	Work Humidity	20—80% (RH)
Lance	Standard 1300mm	Power	AC220-240V / 5W
Equipment 2	Wireless Displayer	Size & Weight	180×150×90mm / 1.3kg
Code	TSP-A3002	Measurement of reaching max temperature within 3 seconds. Wide application of molten iron, molten steel and other liquid metals.
Assistant Function 1	9 Channel Set Temperature
Assistant Function 2	Time show
