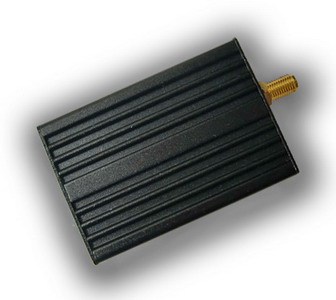

315/433/490/868/915MHz Wireless Transceiver Module

We are offering gfsk module of 115.2kpbs data rate.
Nh-500iw is highly steady, medium power consumption and high ratio of performance and cost module which use the gfsk modulation to send or receive the transparent data. No need to change any data structure or protocols while it fulfills the transportation of data. It has compact size, high sensitivity, long distance, and high communication data rate. users can set the different parameters like the baud rate, working frequency, and the working channel, by the software at host computer and supplied by us.
1. Medium power 500mw, 7 level to down cost, high quality and stability
2. Gsf modulation, half-duplex mode, transmitting and receiving in air, automatically connect and control
3. Free frequency band: free application frequency band including 315433490868915mhz
4. Receiver sensitivity up to -124dbm, and far to 3000 meters, even line of sight 4000 meters in the open air when the antenna height is 2 meters.
5. Transmitting current less of 550ma, output power up to 29dbm
6. Receiving current 30ma, sleeping current less 10ua (ttl user-defined)
7. Standard configuration with 16 channels can meet all combinatorial requirements users need,
capacity of channel extension.
8. Communication baud rate 1.2kbps- 115.2kpbs can be set by users flexibly.
9. Easy to use, automatically transfer the protocols and switch.
10. Voltage ranges from 4.5v to 15.5v, the industrial class without debug while multitude production.
