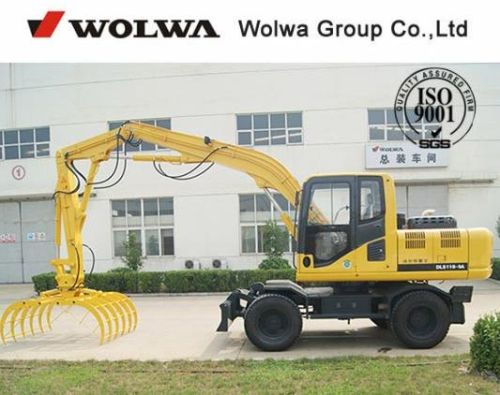

Wolwa Dls118-9a Wheeled Hydraulic Stacker

₹ 9.05 Lakh / 90000 90000 Set

MOQ1 Set(s)
Machine Height (to cab top)2940 mm
Swing Speed0-12 rpm
Outline Dimension1600*930*1160 mm
Travel Speed0-20 Km/h
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shandong Wolwa Construction Machinery Co., Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Overall Length7360 mm（Transportation）
Outline Dimension1600*930*1160 mm
Fuel Tank155 L
Grab Weight330 kg
Working Pressure28 Mpa
Max. Loading Range10103 mm
Max. Discharging Height7900 mm
Max. Loading Weight450 kg
Opening Width1800 mm
Engine Model4BTAA3. 9-CI00
Overall Width2440 mm
Swing Speed0-12 rpm
Travel Speed0-20 Km/h
Machine Height (to cab top)2940 mm
Machine Height (to boom top)3422 mm
Max. Hauling Force64.8 KN
Rated Flow2*70.4+20.7 L/min

We are offering dls118-9a wheeled hydraulic stacker
operating weigh：11,000kg
power：74kw2200rpm
product parameters：
dimensions
overall width 2440 mm
machine height (to cab top) 2940 mm
overall length 7360 mm（transportation）
machine height (to boom top) 3422 mm
ground clearance (bob-weight) 1150 mm
min. Ground clearance 402 mm
tyre gauge front1794 mm, rear1944mm
wheel shaft diameter 2400 mm
mouldboard width 2234 mm
mouldboard height 460 mm
outline dimension 1600*930*1160 mm
opening width 1800 mm
grab weight 330 kg
specifications
engine model 　 4btaa3. 9-ci00
working pressure 28 mpa
rated flow 2*70.4+20.7 lmin
swing speed 0-12 rpm
travel speed 0-20 kmh
maximun hauling force 64.8 kn
max.torque 4001500 n.mrpm
grade ability 20°
fuel tank 155 l
hydraulic oil tank 110 l
rated capacity 2*36+9.3 mlr
operating scope
boom length 4800 mm
arm length 2500+1500 mm
max. Loading range 10103 mm
max. Loading weight 450 kg
max. Discharging height 7900 mm
