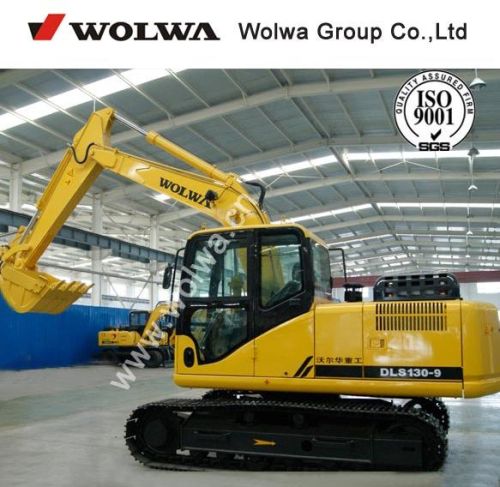

Wolwa Dls130-9 Crawler Hydraulic Excavator

₹ 8.90 Lakh / 80000 80000 Set

MOQ1 Set(s)
Operating Weight13000kg
Overall Length7264mm
Length of Track on Ground2750mm
Width of Track500mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shandong Wolwa Construction Machinery Co., Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Operating Weight13000kg
Track Gauge1980mm
Engine ModelCummins 4BTAA3.9-C100
Max. Digging Reach7170mm
Machine Height2696mm
Overall Width2460mm
Volume of Bucket0.45m³
Overall Length7264mm
Width of Track500mm
Power82kw/2200rpm
Hydraulic PumpK3V63DT
Track Length3486mm
Length of Track on Ground2750mm
Max. Digging Depth4015mm
Max. Dumping Height4976mm
Max. Digging Height6602mm

Dls130-9 crawler hydraulic excavator
operating weight 13000kg
volume of bucket 0.45m³
power 82kw2200rpm
dimensions
overall width 2460mm
machine height 2696mm
overall length 7264mm
ground clearance (bob-weight) 900mm
min. Ground clearance 414mm
length of track on ground 2750mm
width of track 500mm
track length 3486mm
track gauge 1980mm
operating scope
boom length 3920mm
arm length 2100mm
max. Digging reach 7170mm
max. Digging depth 4015mm
max. Digging height 6602mm
max. Dumping height 4976mm
min. Swing radius 2657mm
rear-end swing radius 2335mm
max. Flooring reach 7015mm
max. Vertical digging depth 3620mm
specifications
engine model cummins 4btaa3.9-c100
hydraulic pump k3v63dt
working pressure 32mpa
rated flow 2*116+27.7lmin
swing speed 12rpm
travel speed 5.33.3kmh
bucket digging force 72.4kn
arm digging force 69kn
max. Hauling force 110.5kn
max. Torque 5151400n.mrpm
grade ability 35°
fuel tank 280l
hydraulic oil tank 143l
rated capacity 2*63+15mlr
average ground press 51.6kpa.
