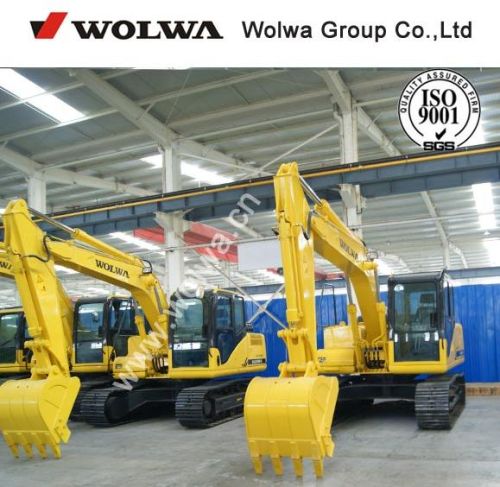

Wolwa Dls160-9 Crawler Hydraulic Excavator

₹ 9.05 Lakh / 100000 100000 Set

MOQ1 Set(s)
Operating Weight15700kg
Fuel Tank310L
Power85kw/2200rpm
Track Gauge2010mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shandong Wolwa Construction Machinery Co., Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Operating Weight15700kg
Fuel Tank310L
Machine Height2657mm
Overall Width2610mm
Track Gauge2010mm
Max. Digging Reach8492mm
Length of Track on Ground3032mm
Track Length3741mm
Width of Track600mm
Volume of Bucket0.6m³
Max. Digging Height8160mm
Working Pressure32Mpa
Overall Length8111mm
Engine ModelCummins 4BTAA3.9-C115
Max. Digging Depth5476mm
Hydraulic PumpK3V63DT
Max. Dumping Height5959mm
Power85kw/2200rpm
Arm Digging Force78kn
Bucket Digging Force80kn

We are offering dls160-9 crawler hydraulic excavator
operating weight 15700kg
volume of bucket 0.6m³
power 85kw2200rpm
dimensions
overall width 2610mm
machine height 2657mm
overall length 8111mm
ground clearance (bob-weight) 1010mm
min. Ground clearance 431mm
length of track on ground 3032mm
width of track 600mm
track length 3741mm
track gauge 2010mm
operating scope
boom length 4600mm
arm length 2500mm
max. Digging reach 8492mm
max. Digging depth 5476mm
max. Digging height 8160mm
max. Dumping height 5959mm
min. Swing radius 2962mm
rear-end swing radius 2520mm
max. Flooring reach 8321mm
max. Vertical digging depth 4978mm
specifications
engine model cummins 4btaa3.9-c115
hydraulic pump k3v63dt
working pressure 32mpa
rated flow 2*116+27.7lmin
swing speed 12rpm
travel speed 5.33.3kmh
bucket digging force 80kn
arm digging force 78kn
max. Hauling force 133.45kn
max. Torque 5301300n.mrpm
grade ability 35°
fuel tank 310l
hydraulic oil tank 200l
rated capacity 2*63+15mlr
average ground press 50kpa
