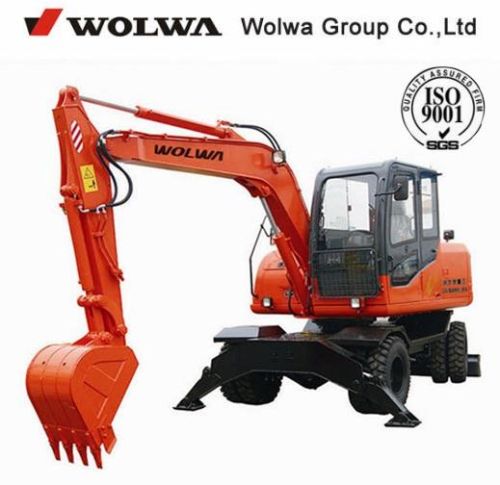

Wolwa DLS890-9A Wheeled Hydraulic Excavator

₹ 9.05 Lakh / 90000 90000 Set

MOQ1 Set(s)
Transportation Length6450mm
Max. Digging Depth3890mm
Max. Digging Reach6545mm
Travel SpeedF1 5km/h, F2 9km/h, F3 16km/h, F4 22km/h, F5 30km/h, R 5km/h
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shandong Wolwa Construction Machinery Co., Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Upper Structure Width2140mm
Machine Height2775mm
Working Pressure21Mpa
Max. Digging Depth3890mm
Max. Digging Height6637mm
Travel SpeedF1 5km/h, F2 9km/h, F3 16km/h, F4 22km/h, F5 30km/h, R 5km/h
Cab Width950mm
Engine ModelA498BZG-503
Max. Dumping Height4865mm
Rated Flow2*55L/min
Power56kw/2200rpm
Overall Height1600mm
Max. Hauling Force47 kn
Fuel Tank127 L
Transportation Length6450mm
Max. Digging Reach6545mm
Operating Weight8000kg
Volume of Bucket0.4m³

Dls890-9a wheeled hydraulic excavator
operating weight 8000kg
volume of bucket 0.4m³
power 56kw2200rpm
dimensions
upper structure width 2140mm
cab width 950mm
machine height 2775mm
transportation length 6450mm
overall height 1600mm
boom length 3500mm
arm length 1800mm
ground clearance (bob-weight) 1030mm
tyre gauge front: 1650mm, rear: 1610mm
wheel shaft diameter 2400mm
mouldboard width 2140mm
mouldboard height 310mm
operating scope
max. Digging reach 6545mm
max. Digging depth 3890mm
max. Digging height 6637mm
max. Dumping height 4865mm
min. Swing radius 2489mm
rear-end swing radius 1989mm
max. Flooring reach 6360mm
specifications
engine model a498bzg-503
rated flow 2*55lmin
working pressure 21mpa
rated capacity 2*25mlr
swing speed 10rpm
travel speed f1 5kmh, f2 9kmh, f3 16kmh,
f4 22kmh, f5 30kmh, r 5kmh
max. Hauling force 47 kn
max. Torque 2921600 n.mrpm
grade ability 25°
fuel tank 127 l
hydraulic oil tank 118 l
